Product Overview

Armstrong 1-AVC/1-AVCW Transparent Air Vent Valve is a high-efficiency air release solution designed for liquid and ozone systems. It utilizes a free-floating ball mechanism for automatic air discharge without external power. The transparent body provides clear visibility of internal operations, allowing early detection of potential issues before they escalate into failures. Constructed with stainless steel and corrosion-resistant materials, this valve ensures long-term reliable performance while reducing energy consumption compared to manual venting methods. It is widely applied in various fluid systems and ozone water purification processes.

Core Benefits

Transparent Visual Operation

The transparent body allows operators to monitor valve performance without disassembly, eliminating unnecessary maintenance costs. Early detection of anomalies helps prevent costly downtime and repairs.

Efficient Automatic Venting

The reliable float mechanism automatically opens only when air or gas is present, completely eliminating liquid loss associated with manual venting. This improves overall system efficiency and reduces operational costs.

Durable Corrosion Resistance

Engineered with reinforced nylon, polycarbonate, and T-316 stainless steel components, the valve withstands harsh media exposure. All critical internal parts are constructed from stainless steel, minimizing maintenance requirements and extending service life.

Stable, Reliable Design

The free-floating ball design ensures a tight seal against the valve seat, preventing liquid leakage. The pivot-free mechanism eliminates wear points, while reinforced components enhance durability for long-term operation.

Technical Specifications

Parameter	1-AVC Model	1-AVCW Model
Inlet Nominal Diameter (DN)	15, 20	20
Replacement Inlet DN	15, 20	15
Outlet Nominal Diameter (DN)	15	15

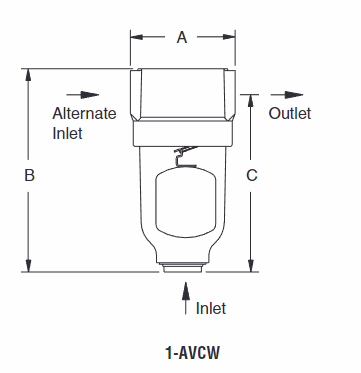

Dimension A (mm)	89	89
Dimension B (mm)	171	172
Dimension C (mm)	152	152
Maximum Allowable Pressure	1.0MPa@65°C	1.0MPa@66°C
Maximum Working Differential Pressure	1.0MPa	1.0MPa
Medium Specific Gravity Range	0.80-1.00	0.80-1.00
Weight	0.45 kg	0.5 kg
Application	General liquid venting	Ozone system venting

Air Release Capacity (Standard Pressure 0.1MPa, 21°C)

Differential Pressure (MPa)	Orifice Size	Capacity (m³/hr)
0.10	1/8"	7.3
0.20	1/8"	11.0
0.35	1/8"	16.1
0.50	1/8"	22.2
0.70	1/8"	28.7
0.85	1/8"	34.8
1.05	1/8"	41.3

Component Materials

1-AVC Model Materials

Component	Material
Valve Cover	Reinforced Nylon
Valve Body	Polycarbonate
"O"-Rings (Cover, Body, Joints)	Vulcanized Rubber
Float Mechanism	Stainless Steel
Disc & Seat	Stainless Steel
Pipe Fittings	Reinforced Nylon
Retaining Ring	Galvanized Steel

1-AVCW Model Materials

Component	Material
Valve Cap	Polycarbonate
Valve Body	Polycarbonate
"O"-Rings (Cover, Body, Joints)	Tetrapropylene Rubber
Float Rod & Screws	T316 Stainless Steel
Disc & Seat	T316 Stainless Steel
Accessories	Polycarbonate
Retaining Ring	Galvanized Steel

Weight Specifications

Model	Weight (kg)
1-AVC	0.45
1-AVCW	0.5

Applications

1-AVC Applications

• Air release in various liquid systems
• Industrial fluid pipeline venting
• General water treatment systems

1-AVCW Applications

• Non-flowing groundwater purification (developing countries)
• Poultry and livestock water treatment
• Bottled water industry purification systems
• Process water filtration and purification
• Ozone water treatment systems

Installation & Operation Notes

1. Not suitable for direct sunlight exposure.
2. Do not use with ketones, chlorinated hydrocarbons, or aromatic hydrocarbons.
3. The 1-AVCW model is specifically designed for ozone systems. Ozone is a strong oxidizer requiring compatible corrosion-resistant equipment.
4. Design, materials, weights, and performance specifications are approximate and subject to change without notice. Please verify current specifications through official channels.
