BURKERT 20015378 (Type 6014) is a direct-acting plunger valve. The stopper and core guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. A Bürkert-specific flange variant (SFB) enables space-saving arrangement of valves on a manifold. Kick and Drop coils are available for the reduction of electrical power consumption during operation.

Key Features

• Direct-acting, compact valve with diameter of up to DN 2.5
• Vibration-proof, bolted coil system
• Banjo threaded connection for direct mounting on pneumatic valves
• Explosion proof variants
• Energy-saving variants with Kick and Drop available

Circuit Functions

Symbol	Description
	Circuit function C (CF C) 3/2-way solenoid valve Direct-acting Normally closed
	Circuit function D (CF D) 3/2-way solenoid valve Direct-acting Normally open
	Circuit function T (CF T) 3/2-way solenoid valve Direct-acting Flow direction optional Normally closed

Material Specifications

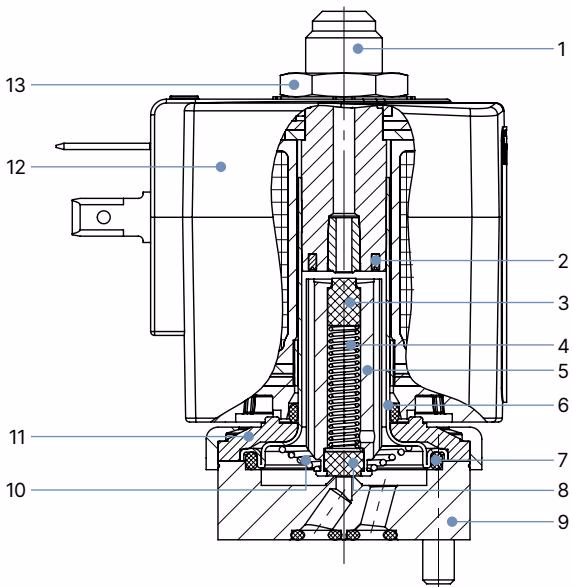

No.	Element	Material
1	Stopper	Stainless steel 1.4105/430F
2	Shading ring	Cu (brass variant) Ag (stainless steel variant)
3	Plunger seal	FKM
4	Spring	Stainless steel 1.4310/301
5	Magnetic core	Stainless steel 1.4105/430F
6	Core guide tube	Stainless steel 1.4303/305/308
7	O-ring	FKM
8	Plunger seal	FKM
9	Valve body	Brass Stainless steel 1.4305/303 Stainless steel 1.4401/316
10	Spring	Stainless steel 1.4310/301
11	Sub-base	Steel, surface finish thick-film passivated (brass variant) Stainless steel 1.4301/304 (stainless steel variant)
12	Coil	PA (Polyamide) Epoxy (High temperature variant)
13	Nut	Steel, surface finish thick-film passivated (brass variant) Stainless steel 1.4305/303 PTFE coated (stainless steel variant)

Performance Specifications

Power Consumption

Orifice [mm]	Coil power [W]	Power consumption Inrush AC [VA]	Power consumption Hold AC [VA/W]	Response times Opening [ms]	Response times Closing [ms]
1.5	8 W AC or 8 W DC (9)	24	8	10...15	15...20
2.0	8 W AC or 8 W DC (9)	24	8	10...15	15...20
2.5	8 W AC or 8 W DC (9)	24	8	10...22	15...20

(Measurement at +20 °C, 6 bar at the valve outlet, opening: pressure build-up 0…90 %, closing: pressure reduction 100…10 %)

Approvals and Conformities

Depending on the specific variant, Type 6014 valves can be supplied with various approvals including ATEX/IECEx (Zone 1/21, Zone 2/22), UL Listed/Recognized for USA and Canada, CSA, FM, CRN, FDA, USP, DNV GL classification, and DIN EN 45545 for fire protection on railway vehicles.

Explosion Protection

The maximum medium temperature must never exceed the permitted temperature class (T4: +135 °C, T5: +100 °C, T6: +85 °C) minus 5 K for explosion-proof variants.
