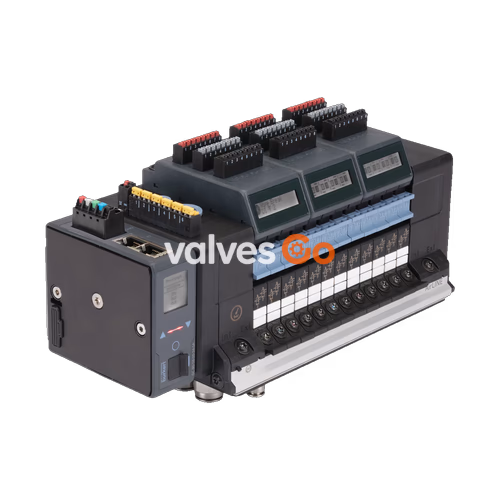

Burkert Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller, enabling a fast overview of the plant status.

The hardware is optimised for installation at the bottom of the control cabinet, though installation on a standard rail is also possible. Key pneumatic functions ensure increased process reliability, such as check valves in the exhaust air ducts that prevent unplanned actuation due to pressure peaks.

Key Features

• Safety-related shut-off of valves possible
• Higher plant availability with PROFINET S2 (system redundancy)
• Process reliability through pneumatic functions
• Optimised for installation at the bottom of the control cabinet
• EX-variants: ATEX / IECEx Zone 2, CCC, cURus HazLoc CL I, II, III Div 2

General Technical Data

Product Properties	Description
Body Material	PA (polyamide)
Seal Material	NBR and PUR
Width per station	11 mm
Manual override	Latching, spring return (optional: lockable)
Number of valve slots	Max. 24
Maximum valve functions	Max. 48
Pressure range	Vac...10 bar
External supply air	3...10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Operating voltage	24 V DC (±10%)
Nominal power per valve	0.7 W (0.175 W after power reduction)
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Ambient temperature	-10 °C...+55 °C
Degree of protection	IP20, IP65 in closed control cabinets

Note on Hot Swap

Flow rate QNn value air with integrated Hot Swap function is reduced by approx. 3%.

AirLINE Quick

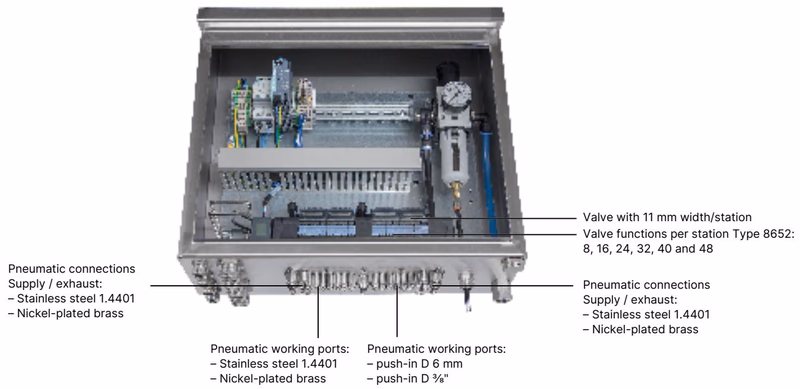

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

• Reduced space requirement in the control cabinet
• Makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Property	Description
Adapter Plate Material	Stainless steel 1.4301, Anodised aluminium
Pneumatic connection	Stainless steel 1.4401, Nickel-plated brass
Pneumatic Supply / Exhaust	Push-in D 10 mm, 3/8"
Pneumatic working ports	Push-in D 6 mm, 1/4"

Circuit Functions

The Type 8652 supports various circuit functions using Type 6534 solenoid valves:

• Circuit function C (CF C): 3/2-way solenoid valve, normally closed.
• Circuit function D (CF D): 2 × 3/2-way solenoid valve, normally open.
• Circuit function H (CF H): 5/2-way solenoid valve.
• Circuit function L (CF L): 5/3-way solenoid valve, in middle position all ports locked.
• Circuit function M (CF M): 5/3-way solenoid valve, in middle position ports 2 and 4 ventilated.
• Circuit function N (CF N): 5/3-way solenoid valve, in middle position ports 2 and 4 exhausted.
• Circuit function Z (CF Z): 5/2-way solenoid valve, impulse variant with 2 coils.

Approvals and Conformities

• Explosion protection: ATEX (BVS 20 ATEX E 031 U II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc) and IECEx (IECEx BVS 20.0024 U Ex ec IIC Gc / Ex tc IIIC Dc).
• North America (USA/Canada): UL Listed (UL 61010-1, CAN/CSA-C22.2 No. 61010-1) and UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Division 2).
• China Compulsory Certification (CCC): Suitable for import and use for hazardous applications in China.

Dimensions

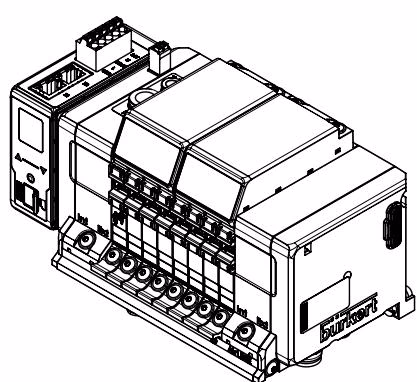

Variant 4-, 8- and 12-fold

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

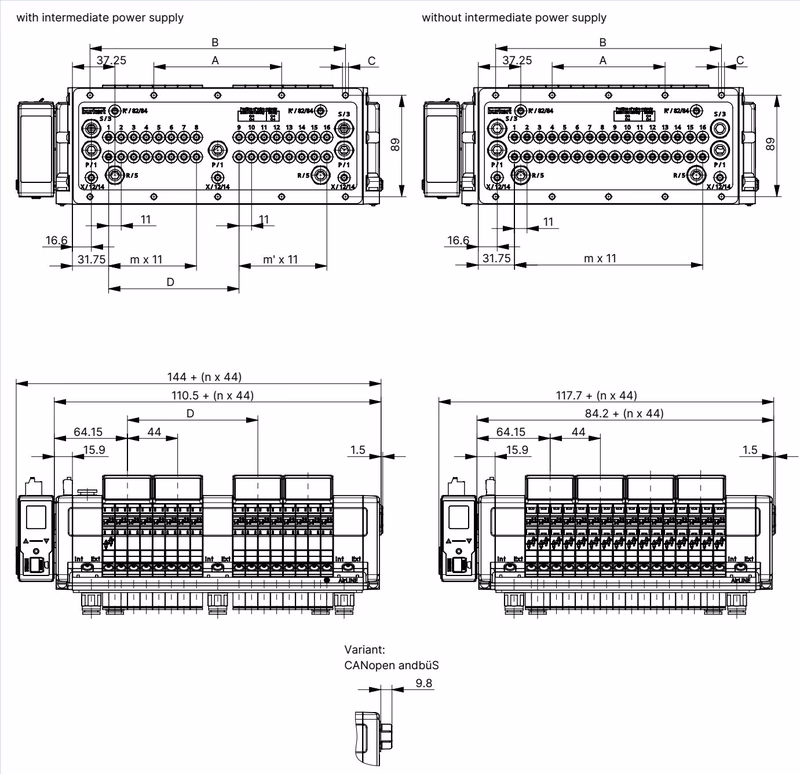

Variant 16-, 20- and 24-fold

Variant	A	B	C	D	m	m'	n
16-fold with intermediate supply	112	224	10 x M5	114.3	7	7	4
20-fold with intermediate supply	134	268	10 x M5	158.3	11	7	5
24-fold with intermediate supply	156	312	10 x M5	158.3	11	11	6

Product Connections

Power supply for communication and displays

Connect 5-pin spring-loaded terminal according to the pin assignment (Possible cable cross-section: ≤ 1.5 mm²).

Pin	Colour	Assignment
1	Red	24 V DC
2	White	CAN_H (büS connection)
3	Green	SHIELDING
4	Blue	CAN_L (büS connection)
5	Black	GND

Power supply for pneumatic valves

The interface plate has a 2-pin spring-loaded terminal to which the pneumatic valves’ power supply is connected.

Clip	Colour	Assignment
1	Red	AUX 24 V
2	Black	GND

Product Installation

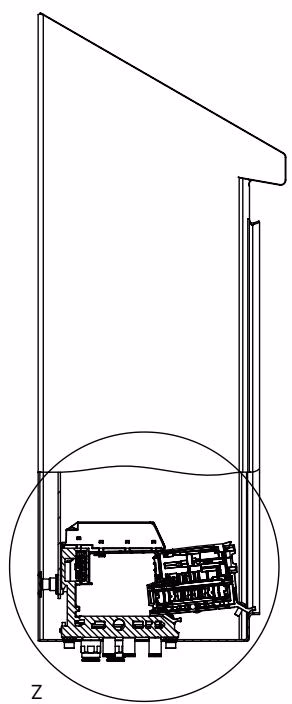

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

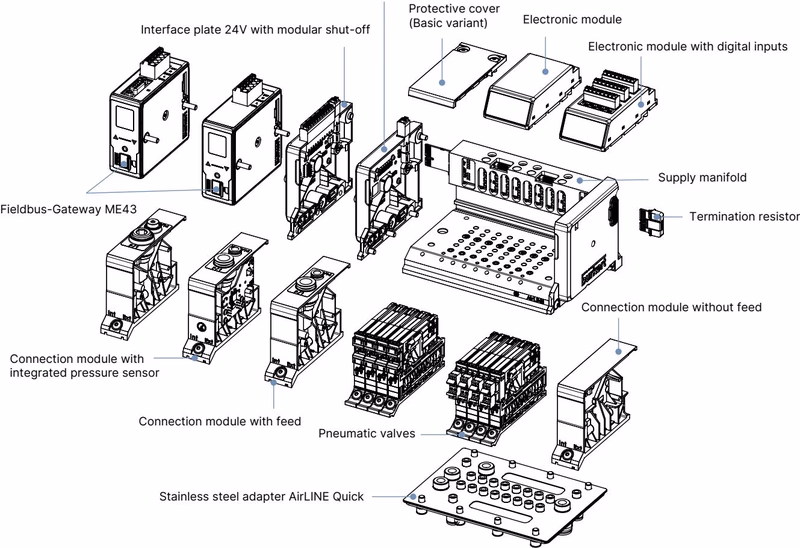

Product Design and Assembly

Electronic module with digital inputs (optional)

The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10…30 V as well as mechanical limit switches can be used.

Valves Type 6534 for safety-related shut-off, SIA variant (optional)

Type 6534 valves are equipped with additional connection terminals. A valve circuit can therefore be interrupted by an external switch. Manual override is not required for these valve variants. To use the shut-off function, connect the terminal to a potential-free contact (mechanical switch or relay).

Example Configuration

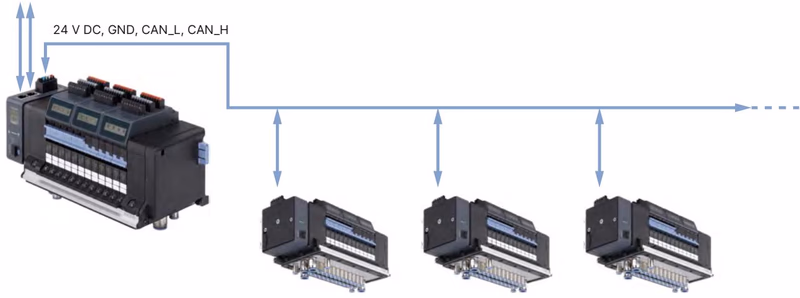

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.

Product Accessories

Bürkert Communicator software: The Bürkert Communicator is the most important software component of the EDIP (Efficient Device Integration Platform). Various features of this universal tool simplify the configuration and parametrisation of devices equipped with a digital CANopen-based interface. The integrated graphical programming environment enables the creation of decentralised sub-system control functions.
