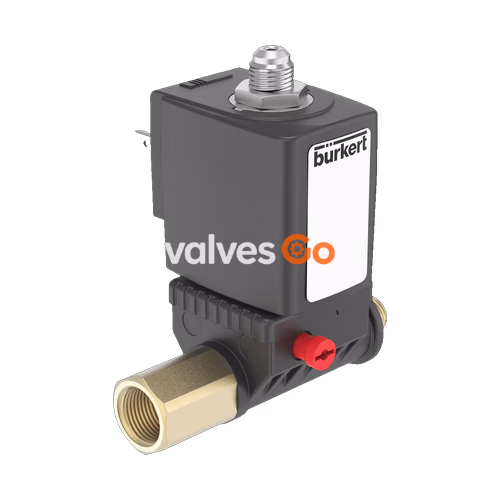

BURKERT 20034129 is a direct-acting, compact 3/2-way plunger solenoid valve belonging to the Type 6014 family. This specific model features a Banjo G 1/4 threaded connection for direct mounting on pneumatic valves, a 2.0 mm orifice, a PPS (Polyphenylene sulphide) body, and FKM seals. It operates as a normally closed (Circuit Function C) valve and is equipped with a 230V / 50Hz AC coil and a manual override for easy commissioning and maintenance.

The stopper and core guide tube are welded together to enhance pressure resistance and leak-tightness. The coil is encapsulated with polyamide and offers a vibration-proof, bolted coil system.

Circuit Function

Circuit function C (CF C) 3/2-way solenoid valve, direct-acting, normally closed.

General Technical Data

Product properties
Orifice	DN 1.5...DN 2.5 (Model 20034129: 2.0 mm)
Circuit function	C (Normally closed)
Manual override	Yes (emergency manual override)
Thermal insulation class	Polyamide coil class B
Duty cycle	100% continuous operation
Operating voltage	230 V 50 Hz
Voltage tolerance	±10%
Operating medium	Technical vacuum, neutral gases and liquids
Medium temperature	-10 °C...+100 °C (PA coil with FKM)
Ambient temperature	Max. +55 °C
Degree of protection	IP65 with cable plug Type 2518

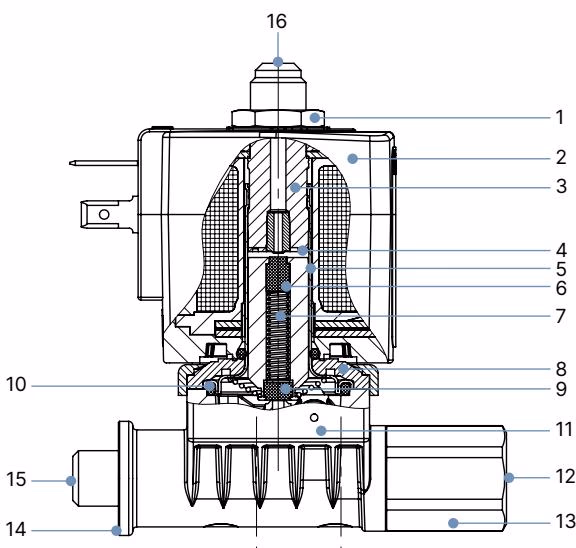

Materials (Banjo Variant)

Dimensions (Banjo Variant)

INFO

Dimensions in mm.

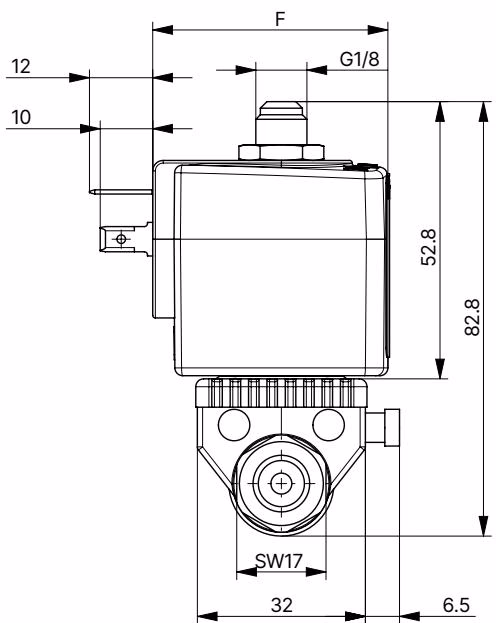

With 76 mm banjo bolt

Variant	A [inch]	P [inch]	G [mm]
BJ02	G 1/4	G 1/4	10
BJ03	G 1/8	NPT 1/4	10
BJ04	G 1/4	NPT 1/4	10
BJ05	G 1/8	G 1/4	10
BJ07	G 1/8	NPT 1/8	10

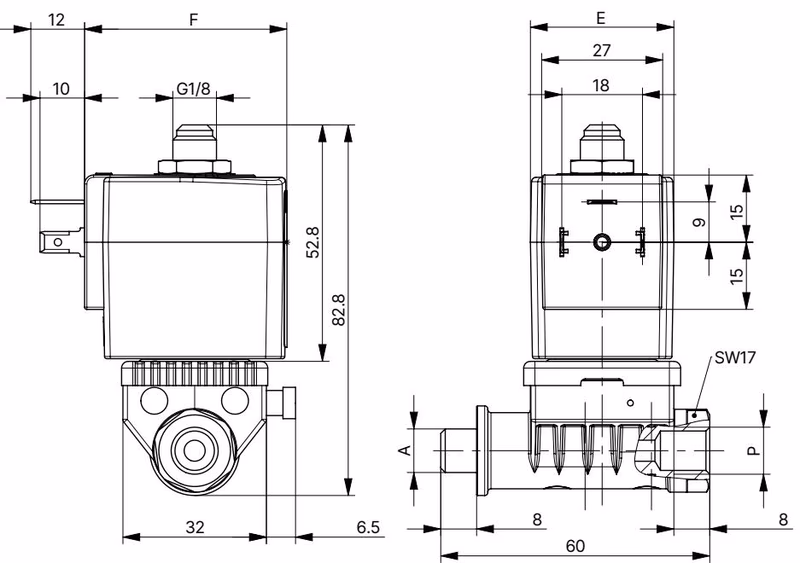

With 60 mm banjo bolt

Variant	A [inch]	P [inch]
BJ01	G 1/8	G 1/8
BJ06	G 1/4	G 1/8

Coil size	E [mm]	F [mm]
5	32	45
6	40	51

Performance Specifications

Power consumption

Orifice [mm]	Coil power [W]	Inrush AC [VA]	Hold AC [VA/W]	Opening [ms]	Closing [ms]
1.5	8 W AC or 8 W DC	24	8	10...15	15...20
2.0	8 W AC or 8 W DC	24	8	10...15	15...20
2.5	8 W AC or 8 W DC	24	8	15...20	10...22
Measurement at +20 °C, 6 bar at the valve outlet, opening: pressure build-up 0…90 %, closing: pressure reduction 100…10 %
