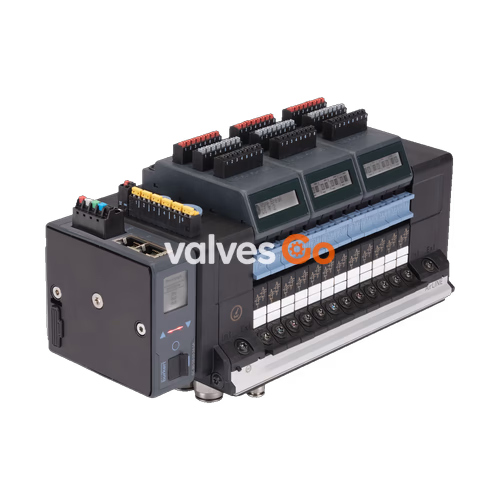

The BURKERT Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller, enabling a fast overview of the plant status.

The hardware is optimised for installation at the bottom of the control cabinet. Installation on a standard rail is also possible. Key pneumatic functions ensure increased process reliability. For instance, check valves in the exhaust air ducts make sure there is no unplanned actuation due to pressure peaks.

Advantages

• Safety-related shut-off of valves possible
• Higher plant availability with PROFINET S2 (system redundancy)
• Process reliability through pneumatic functions
• Optimised for installation at the bottom of the control cabinet
• EX-variants: ATEX / IECEx Zone 2, CCC, cURus HazLoc CL I, II, III Div 2

General Technical Data

Product properties	Description
Body material	PA (polyamide)
Seal material	NBR and PUR
Width per station	11 mm
Number of valve slots	Max. 24
Maximum number of valve functions	Max. 48
Pressure range	Vac...10 bar
External supply air	3...10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Operating voltage	24 V DC (±10% tolerance)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Degree of protection	IP20, IP65 in closed control cabinets
Ambient temperature	-10 °C...+55 °C

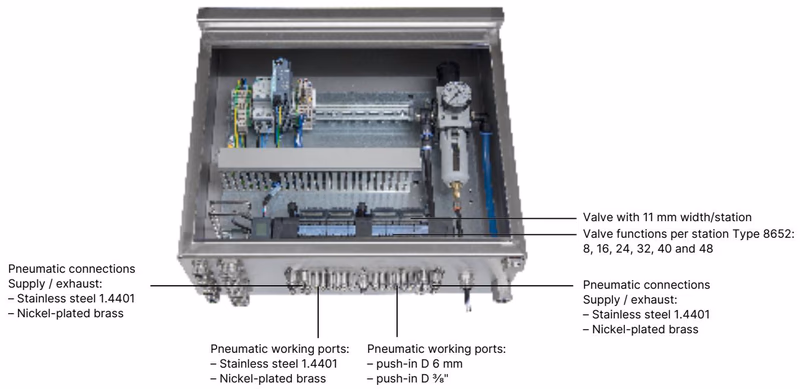

AirLINE Quick

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Product properties	Description
AirLINE Quick Adapter Plate	Stainless steel 1.4301, Anodised aluminium
Pneumatic connection	Stainless steel 1.4401, Nickel-plated brass
Valve functions per station	8, 16, 24, 32, 40 and 48
Pneumatic Supply / Exhaust	Push-in D 10 mm, 3/8"
Pneumatic working ports	Push-in D 6 mm, 1/4"

Circuit Functions

• Circuit function C (CF C): 3/2-way solenoid valve, servo-controlled, normally closed.
• Circuit function D (CF D): 2 × 3/2-way solenoid valve, servo-controlled, normally open.
• Circuit function H (CF H): 5/2-way solenoid valve, servo-controlled.
• Circuit function L (CF L): 5/3-way solenoid valve, in middle position all ports locked.
• Circuit function M (CF M): 5/3-way solenoid valve, in middle position ports 2 and 4 ventilated.
• Circuit function N (CF N): 5/3-way solenoid valve, in middle position ports 2 and 4 exhausted.
• Circuit function Z (CF Z): 5/2-way solenoid valve, impulse variant with 2 coils.

Approvals and Conformities

• Explosion protection: ATEX (II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc), IECEx (Ex ec IIC Gc / Ex tc IIIC Dc). Suitable for zone 2/22.
• North America (USA/Canada): UL Listed (UL 61010-1), UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Div 2).
• Others: China Compulsory Certification (CCC) for hazardous applications in China.

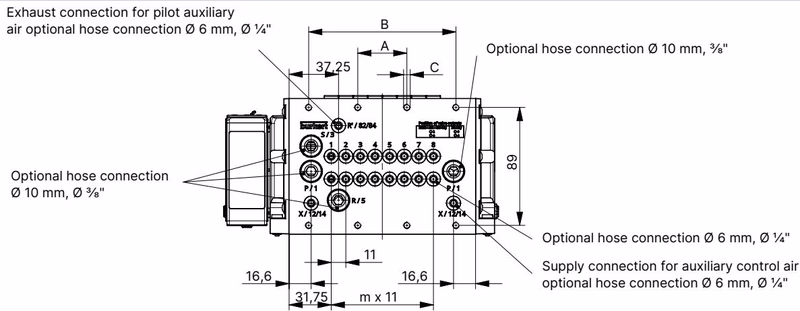

Dimensions

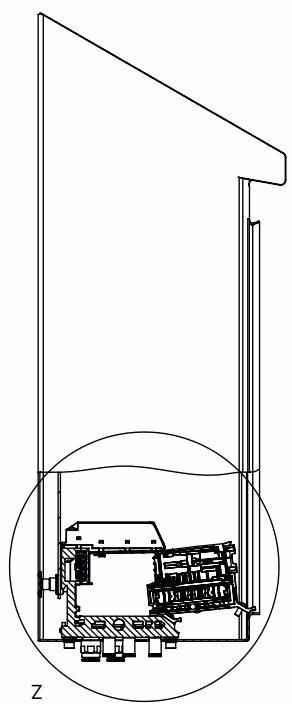

Product Installation

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

Safety in Potentially Explosive Areas

• Do not connect or disconnect when energized.
• The use of the Hot Swap function is not permitted in a present explosive atmosphere.
• Install the device in an enclosure suitable for the applicable requirements of EN/IEC 60079-0 and EN/IEC 60079-7 for type of protection "ec" with a degree of protection of at least IP54.
