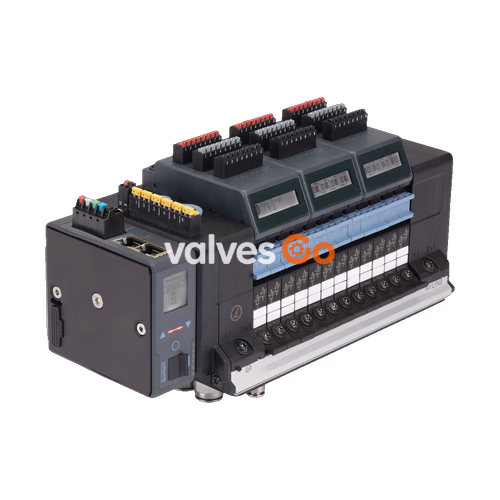

Burkert 20046303 Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller. This, therefore, enables a fast overview of the plant status.

The hardware is optimised for installation at the bottom of the control cabinet. Installation on a standard rail is, of course, also possible. Moreover, key pneumatic functions ensure increased process reliability. For instance, check valves in the exhaust air ducts make sure there is no unplanned actuation due to pressure peaks.

Features

• Safety-related shut-off of valves possible
• Higher plant availability with PROFINET S2 (system redundancy)
• Process reliability through pneumatic functions
• Optimised for installation at the bottom of the control cabinet
• EX-variants: ATEX / IECEx Zone 2, CCC, cURus HazLoc CL I, II, III Div 2

General Technical Data

Product properties	Description
Material
Body	PA (polyamide)
Seal	NBR and PUR
Width per station	11 mm
Manual override	Latching, spring return (optional: lockable)
Number of valve slots	Max. 24
Maximum number of valve functions	Max. 48
Performance data
Pressure range	Vac...10 bar
External supply air	3...10 bar
Flow rate $Q_{Nn}$ value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Nominal operating mode	Continuous operation (100 % duty cycle)
Electrical data
Operating voltage	24 V DC (Voltage tolerance ±10%)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Nominal current of each valve	29 mA (10 mA after power reduction)
Digital input	Max. 48
Medium data
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Compressed air quality	ISO 8573-1: 2010, Class 7.4.4
Environment and installation
Ambient temperature	-10 °C...+55 °C
Storage temperature	-20 °C...+60 °C

AirLINE Quick

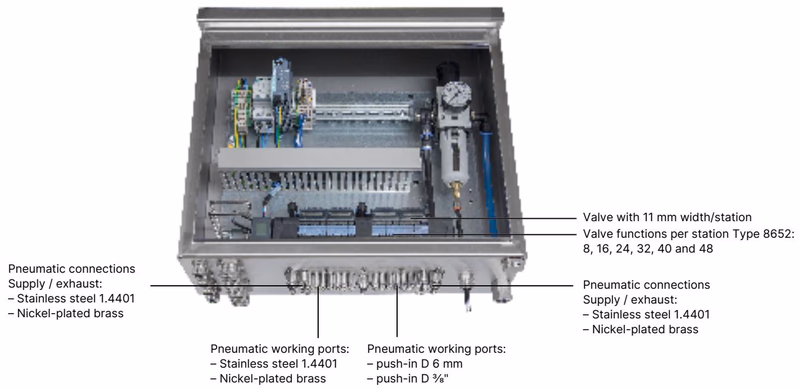

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

• Reduced space requirement in the control cabinet
• This makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Product properties	Description
Material
AirLINE Quick Adapter Plate	Stainless steel 1.4301 / Anodised aluminium
Pneumatic connection	Stainless steel 1.4401 / Nickel-plated brass
Valve functions per station	8, 16, 24, 32, 40 and 48
Product connections
Pneumatic Supply / Exhaust	Push-in D 10 mm, 3/8"
Pneumatic working ports	Push-in D 6 mm, 1/4"

Approvals and Conformities

Approval	Description
Explosion protection	Optional: As a category 3 device suitable for zone 2/22. ATEX: BVS 20 ATEX E 031 U (II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc) IECEx: IECEx BVS 20.0024 U (Ex ec IIC Gc / Ex tc IIIC Dc)
North America (USA/Canada)	Optional: UL Listed for the USA and Canada (UL 61010-1). Optional: UL Recognized for Hazardous Locations (Class I, Zone 2 / Class II, Zone 22 / Class I, Division 2).
China Compulsory Certification (CCC)	Optional: The products with Ex approval are suitable for import and use for hazardous applications in China.

Dimensions

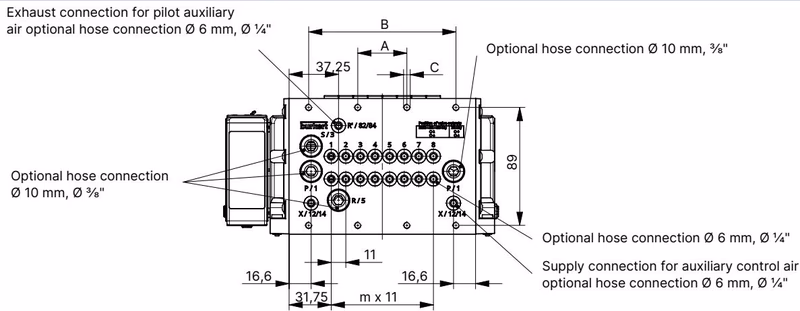

Variant 4-, 8- and 12-fold

INFO

Dimensions in mm, unless otherwise stated.

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

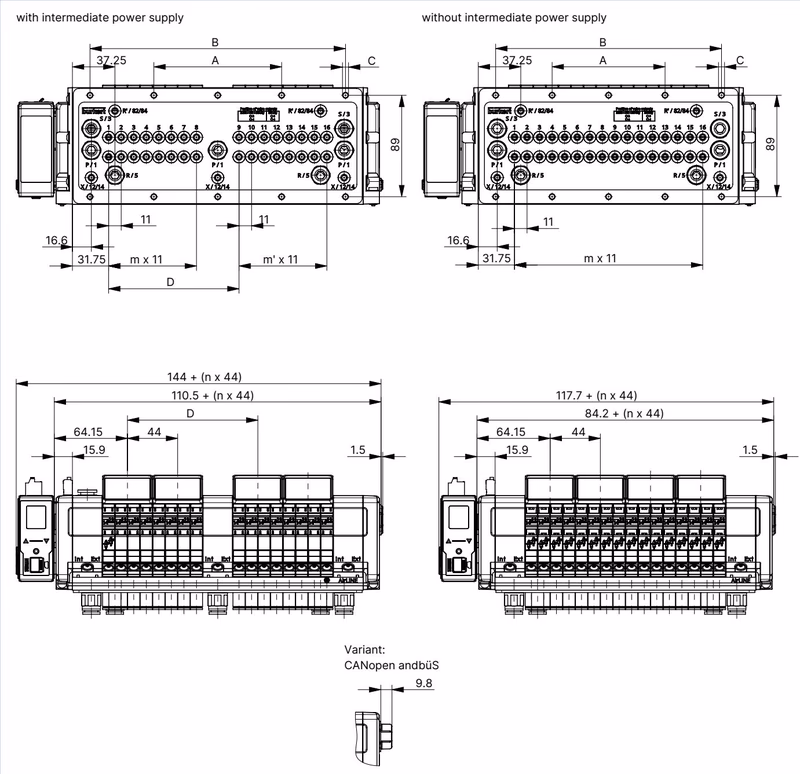

Variant 16-, 20- and 24-fold

Variant	A	B	C	D	m	m'	n
16-fold with intermediate supply	112	224	10 x M5	114.3	7	7	4
20-fold with intermediate supply	134	268	10 x M5	158.3	11	7	5
24-fold with intermediate supply	156	312	10 x M5	158.3	11	11	6
16-fold without intermediate supply	99	198	10 x M5	-	15	-	4
20-fold without intermediate supply	121	242	10 x M5	-	19	-	5
24-fold without intermediate supply	143	286	10 x M5	-	23	-	6

Product Connections

Power Supply for Communication and Displays

TIP

Connect 5-pin spring-loaded terminal according to the pin assignment. Possible cable cross-section: ≤ 1.5 mm².

Spring-loaded terminal 5-pin	Colour	Assignment
Pin 1	Red	24 V DC
Pin 2	White	CAN_H (büS connection)
Pin 3	Green	SHIELDING
Pin 4	Blue	CAN_L (büS connection)
Pin 5	Black	GND

Fieldbus Interface

Industrial Ethernet (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) or PROFINET S2 – Interface X1 and X2 RJ45	Pin	Assignment
Pin 1	1	TX+
Pin 2	2	TX-
Pin 3	3	RX+
Pin 6	6	RX-

Product Installation

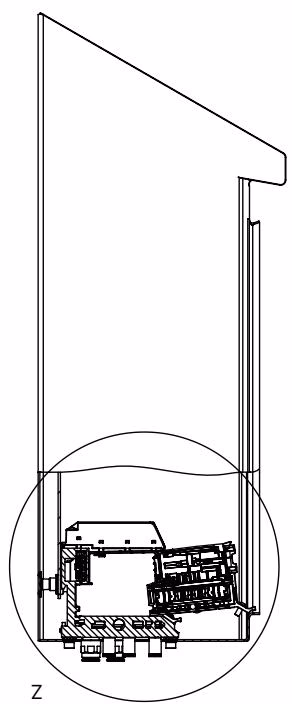

To use the Hot Swap function, always observe a minimum distance to the front edge of the control cabinet when installing the valve island inside the control cabinet.

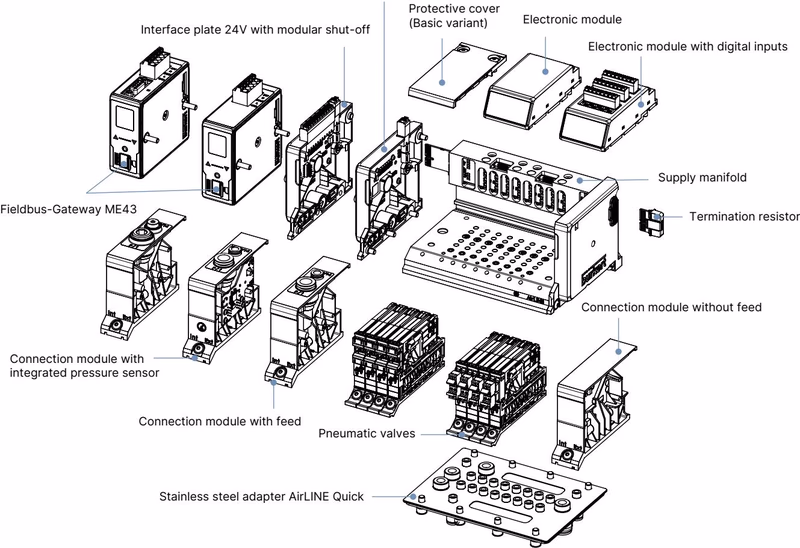

Product Design and Assembly

Electronic Module with Digital Inputs (Optional)

The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10…30 V as well as mechanical limit switches can be used.

Possible data	3-wire sensors	2-wire sensors	Mechanical limit switches
Sensor actuated	X	X	X
Sensor not actuated	X	X	X
Short circuit	X	-	-
Wire break	-	X	-

Example Configuration

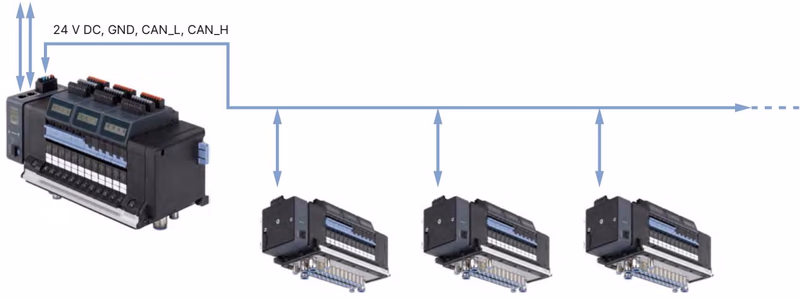

The following illustration shows a network with the example of AirLINE Type 8652 with Industrial Ethernet variant (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) as master valve terminal and various AirLINE Type 8652 with büS variant as slave valve terminals.
