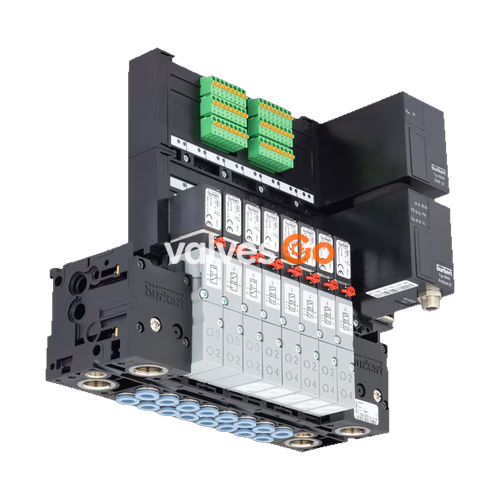

Burkert Type 8640 (SKU 20064208) is a modular valve island designed to solve diverse and complex control problems due to its systematic modular construction and combination of pneumatic and electrical interfaces. By putting together a row of pneumatic modules with different numbers of valves, 2 to 24 valve functionalities may be realized on one valve unit. Electrical connectivity is achieved by either fieldbus interfaces, common connection (parallel connection technique) or multipin interfaces. The bodies and connection modules are made of high-quality plastic (polyamide) and are easy to assemble by means of the built-in snap connectors.

Key Features

• Compact design
• Modular configuration
• Higher flexibility in control cabinet due to AirLINE Quick
• Simple exchange of valves (with option "P-shut-off" – also possible during operation)

Safety Instructions

Risk of injury due to high pressure and escaping medium. Switch off the pressure before working on the device or system. Vent or drain the pipes.

Risk of injury due to electric shock. Switch off voltage before working on the device or system. Secure against reactivation. Observe any applicable accident prevention and safety regulations for electrical devices.

Electrostatically Sensitive Components

The device contains electronic components that are susceptible to the effects of electrostatic discharging (ESD). Components that come into contact with electrostatically charged persons or objects are at risk. Meet the requirements specified by EN 61340-5-1 to minimise or avoid the possibility of damage caused by sudden electrostatic discharge.

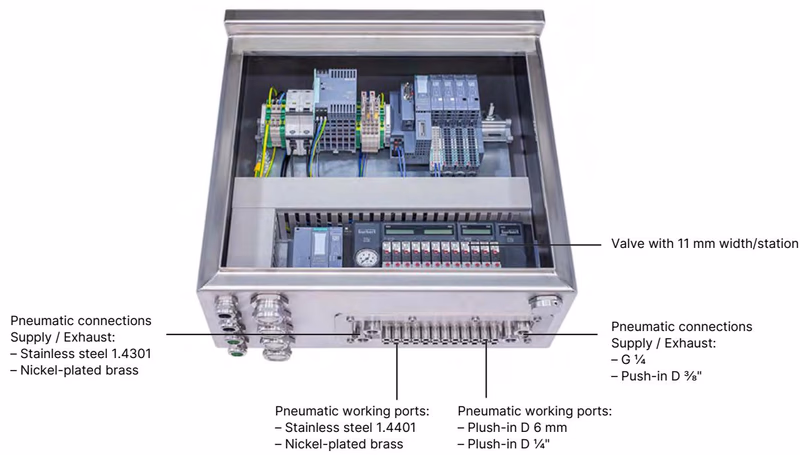

AirLINE Quick Adapter

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

• Reduced space requirement in the control cabinet
• This makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Installation

Valve Block Installation

Standard rail installation:

1. Hook the valve block with the upper groove into the standard rail (35 x 15 or 35 x 7.5 EN 50022).
2. Snap the lower clamping pieces into the standard rail.
3. Tighten the screws on the clamping pieces.

Wall installation: Fasten the valve block directly to the wall with M4 screws.

Tightening Torques for Port Connections

Observe the following tightening torques when screwing into the port connections. The specified tightening torque may vary depending on the sealing system.

Port size	Marking/function	Recommended tightening torque [Nm]	Maximum tightening torque [Nm]
G1/4	P, R/S connection	4...7	20
NPT1/4	P, R/S connection	4...7	20
G1/8	P, R/S connection A/B valve outlets	3...6	7
NPT1/8	P, R/S connection A/B valve outlets	3...6	7

Recommended Action for Push-in Connectors

Our push-in connectors meet the requirements specified in the ISO 14743:2020 standard. Ensure that the appropriate combination of hose material (polyamide or polyurethane) and push-in connector is used, as different materials require different holding forces.

Minimum tensile force for the tensile test (DIN ISO 14743:2020):

Hose OD, D, mm	3	4	6	8	10	12	14	16
Hose OD, D, in (mm)	1/8(3.17)	5/32(4)	1/4(6.35)	5/16(8)	3/8(9.52)	1/2(12.7)	-	5/8(16)
Minimum tensile force for polyamide hose (PA), N	60	70	120	170	250	300	300	350
Minimum tensile force for polyurethane hose (PU), N	25	50	100	150	200	200	250	300

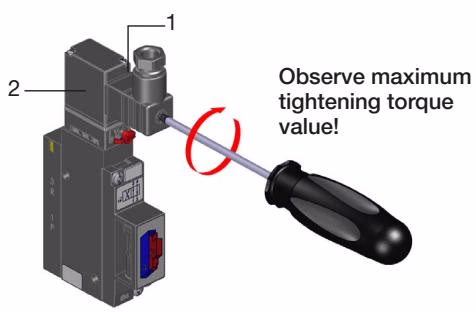

Electrical Installation of Cable Plugs

1. Screw on the cable plug (see data sheet for approved types), observing the maximum tightening torque of 0.3 Nm.
2. Check that the seal is correctly fitted.
3. Connect the protective conductor and check electrical continuity between coil and housing.

Maintenance and Troubleshooting

Fault	Possible cause	Remedy
Valves do not switch	No operating voltage or operating voltage too low	Check electrical connection. Ensure operating voltage according to type label.
	Manual override not in zero position	Bring manual override to zero position.
	Pressure supply insufficient or not available	Set up large-volume pressure supply. Minimum operating pressure ≥ 2 bar.
Valves switch with a delay or blow off at the exhaust ports	Pressure supply insufficient or not available	Set up large-volume pressure supply. Minimum operating pressure ≥ 2 bar.
	Valves are not in the home position (de-energised) during pressure build-up	Apply pressure to the valve block before the valves are switched.
	Insufficient ventilation of the exhaust air ducts due to too small or dirty silencers (back pressure)	Use suitably sized silencers or expansion vessels. Clean the dirty silencers.
	Impurities or foreign matter in the pilot or pneumatic valve	Apply pulsed pressure to the exhaust air ducts to blow out the impurities. Install a new pilot or pneumatic valve.
Leaky valve blocks	Missing or crushed O-rings between the modules	Identify leak or missing seals.
	Missing or incorrectly positioned flat seals between valve and base plate	Insert missing seals or replace damaged seals.
