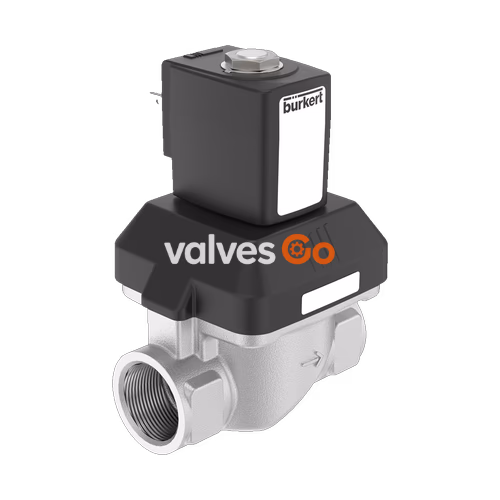

Burkert Type 6213 EV is a servo-assisted diaphragm valve. The spring coupling of the diaphragm supports the opening process in the valve. In its standard variant, the valve is suitable for deployment with liquids. A minimum differential pressure is required for full opening. For gas and vacuum applications, a special variant is available (HP00) that opens the valve without differential pressure. Various diaphragm materials are available depending on the actual application.

Features

• Servo-assisted diaphragm valve with nominal diameter of up to DN 40
• Spring coupled diaphragm opens without differential pressure
• Damped design for low noise
• High flow rate with compact design
• Energy-saving double coil technology with kick and drop variant

Circuit Function

Circuit function A (CF A): 2/2-way solenoid valve, servo-controlled, normally closed.

General Technical Data

Property	Description
Seal Material	EPDM
Body Material	Stainless steel 1.4408
Coil Material	Polyamide, epoxy (insulation class H)
Valve Inner Parts	Stainless steel and PPS
Duty Cycle	100 % continuous operation
Voltage Tolerance	±10%
Degree of Protection	IP65 with cable plug Type 2518
Installation	As required, preferably with actuator upright

Usage Conditions

Unless otherwise specified on the type label, the solenoid actuator is suitable for continuous operation. During a long downtime, a minimum activity of at least 1–2 switching operations per day is recommended.

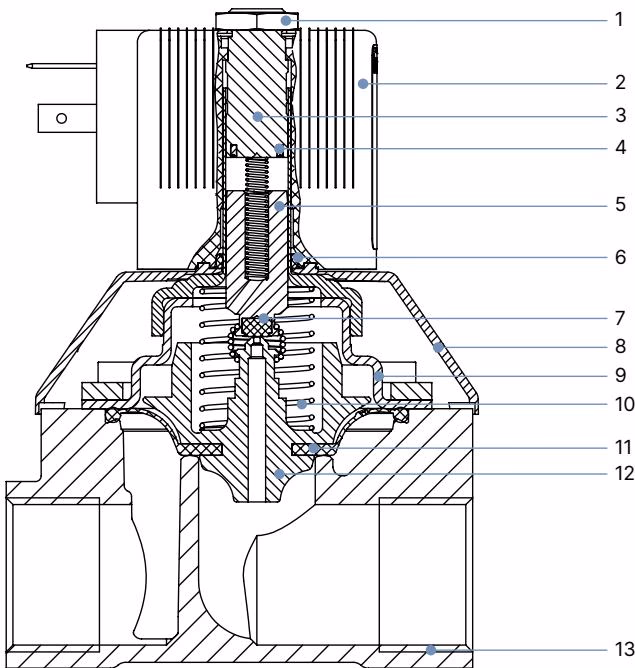

Materials

The sectional view shown corresponds to the standard variant (DN 20). For other variants and nominal diameters, the sectional view varies.

No.	Element	Material
1	Nut	Steel (thick-film passivated according to RoHS), Stainless steel 1.4305, PTFE-coated
2	Coil	Polyamide or epoxy
3	Stopper	Stainless steel 1.4113
4	Shading ring	Silver (Ag) for stainless steel body
5	Magnetic core	Stainless steel 1.4113
6	O-ring	FKM
7	Plunger seal	NBR, FKM, EPDM
8	Bonnet	PA6
9	Cover	DN 10...DN 25: stainless steel 1.4301; DN 40: brass, stainless steel 1.4408
10	Spring	Stainless steel 1.4310
11	Diaphragm	NBR, FKM, EPDM
12	Diaphragm support	PPSGF40 in combination with stainless steel parts
13	Valve body	Stainless steel 1.4408

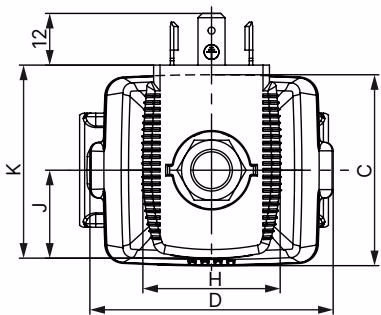

Dimensions

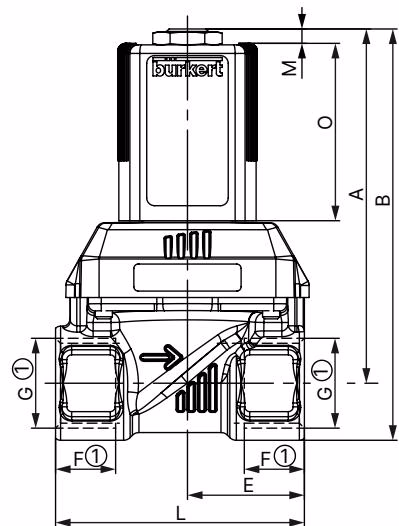

Standard variant with stainless steel body

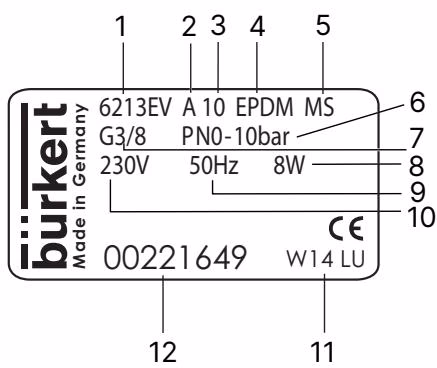

Type Label

1. Type
2. Circuit function
3. Orifice
4. Sealing material
5. Body material
6. PN
7. Connection type
8. Power
9. Frequency
10. Voltage
11. Manufacture code
12. Article number

Installation & Maintenance

Risk of injury from high pressure

Before loosening lines or valves, switch off the pressure and vent the lines.

Risk of injury from electric shock

Before reaching into the device or the system, switch off the power supply and secure it against reactivation.

Installation Approach:

1. Clean pipelines of any contamination.
2. Install a dirt trap upstream of the valve inlet (≤ 500 µm).
3. Hold the device on the body using an open-end wrench and screw into the pipeline. Do not use the solenoid as a lever arm.
4. Observe the flow direction: the arrow on the body indicates the flow direction.

Solenoid Installation:

1. Slide solenoid housing onto core guide tube.
2. Screw solenoid with nut. Observe tightening torques (5 Nm for AC10, 10 Nm for AC19).
3. Always tighten nut with an open-end wrench. Using other tools may damage the device.

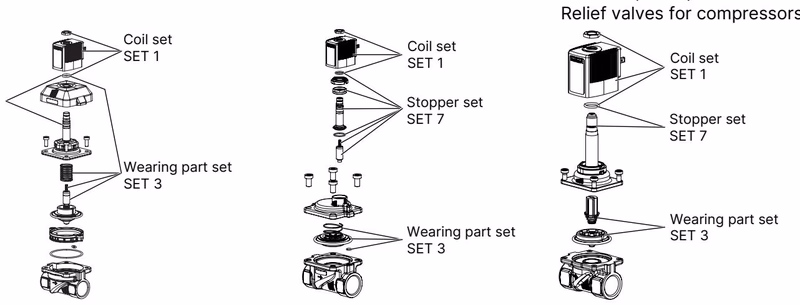

Spare Parts
