Burkert Type 2100 pneumatically operated 2/2-way angle seat valve ELEMENT is specially optimized for decentralized process automation and fulfills the tough criteria in process environments. Its unique design allows easy integration of automation units in all expansion stages, from electrical/optical position feedback to pneumatic control and integrated fieldbus interface. Maximum service life and tightness are achieved by the proven self-adjusting v-seal packing gland. The highly integrated system of valve and automation unit is characterized by its compact and smooth design, integrated pilot air ducts, protection classes IP65/67, NEMA Type 4X, and high resistance to chemicals.

General Technical Data

Product properties
Design	Angle seat valve
Nominal diameter	DN 10...DN 80, NPS 3/8...NPS 3
Safety setting	Normally closed (control function A), normally open (control function B)
Flow direction	Flow to open (below seat), flow to close (above seat)

Performance data
Operating pressure	0 bar(g)...25 bar(g), vacuum variants...- 0.9 bar(g) (option)
Nominal pressure	PN 25 (DIN EN 1333), Class 150 (DIN EN 1759)
Pilot pressure	2.5 bar(g)...10 bar(g)
Seat leakage	Leakage rate A (DIN EN 12266-1), seat seal PTFE and PEEK, test medium air
Kv value	1.6 m³/h...+ 140 m³/h

Medium data
Operating medium	Steam, water, neutral gases, alcohols, oils, fuels, hydraulic fluids, salt solutions, alkalis, organic solvents, oxygen and fuel gases
Medium temperature	- 40 °C...+ 230 °C
Viscosity	Max. 600 mm²/s
Control medium	Air, neutral gases

Product Overview

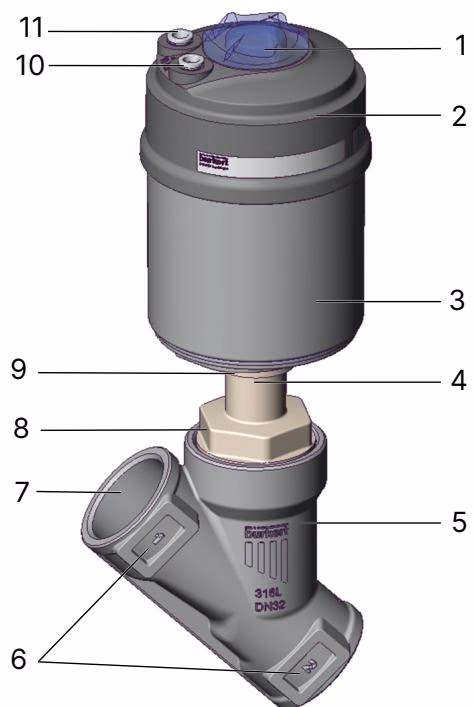

2/2-way valve

1. Transparent cap with position
2. Actuator cover
3. Actuator housing
4. Relief bore
5. Valve body
6. Flow direction marking
7. Port connection
8. Body connection
9. Actuator connection
10. Pilot air port 1
11. Pilot air port 2

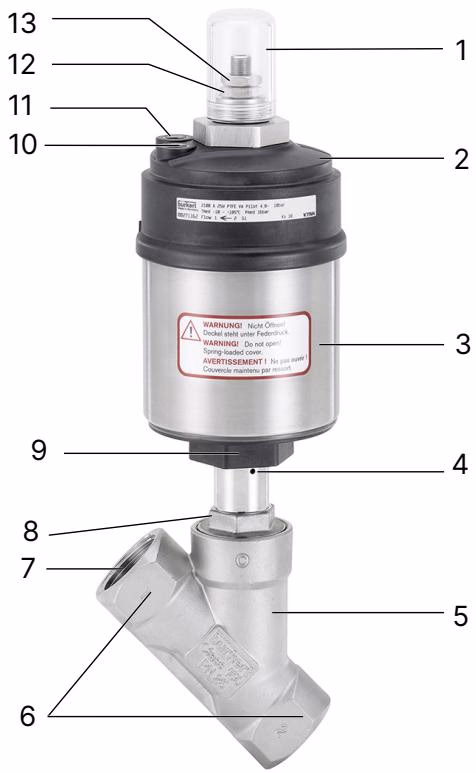

2/3-way valve

Control Functions and Flow Direction

WARNING

Risk of damage due to bursting pipes and bursting equipment when the flow is above the seat. In the case of liquid mediums, water hammer can occur causing pipes and the device to burst. Do not use valves with flow above the seat for liquid mediums.

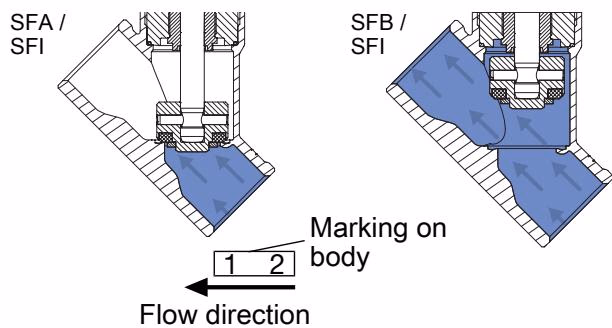

Flow direction below the seat

Only use flow direction below the seat for liquid media, gases, and vapours. As the medium is present under the swivel plate, the operating pressure contributes to the opening of the valve.

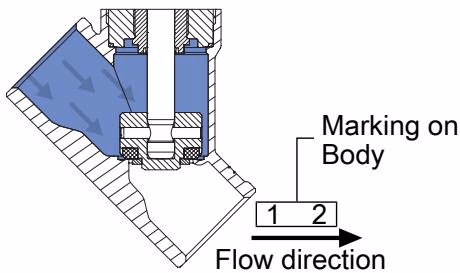

Flow direction above the seat

Only use flow direction above the seat for gases and vapours, and for valves with control function A (closed by spring force in rest position). As the medium is present above the swivel plate, the operating pressure contributes to the closing of the valve and supports the sealing of the valve seat.

Materials

Element	Material
Actuator cover	PPS
Actuator casing	Stainless steel 1.4561 (316Ti)
Piston seal	FKM
Spring	Stainless steel 1.4310
Pipe	Stainless steel 1.4401 (316)/1.4404 (316L)
Packing gland	PTFE V-Rings (filled), with spring compensation
Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
Spindle guide	PEEK
Body seal	Graphite, PTFE (Option)
Swivel plate	Stainless steel 1.4401 (316)/1.4404 (316L)
Seat seal	PTFE, PEEK (Option)
Valve body	Stainless steel CF3M

INFO

The lubricants for packing gland and actuator are classified according to NSF H1.

Dimensions

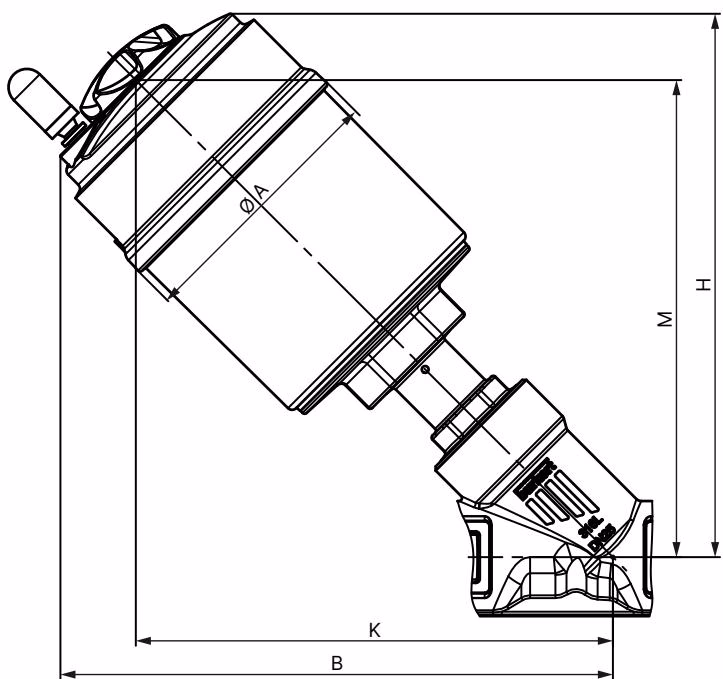

Actuator

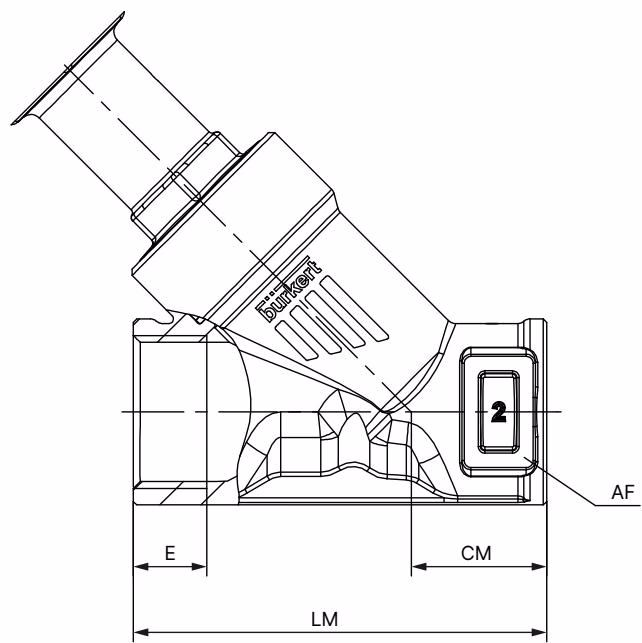

Body with threaded connection

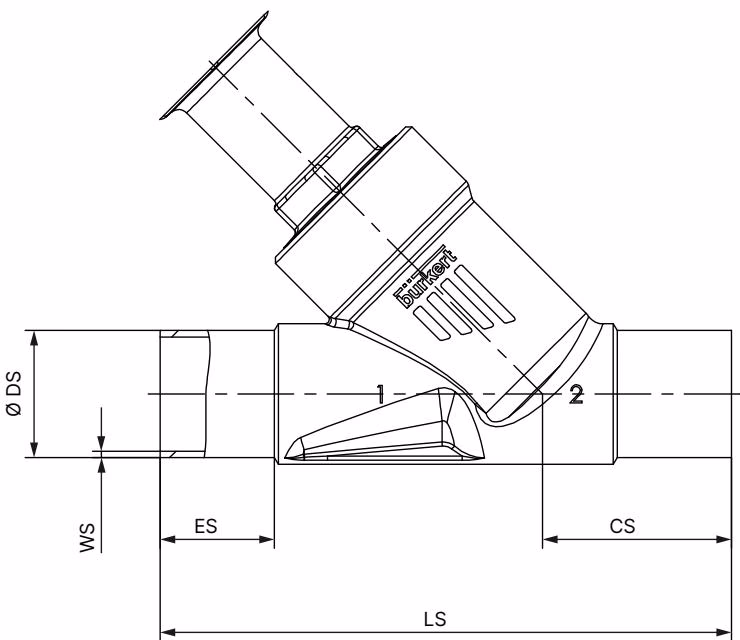

Body with welded connection

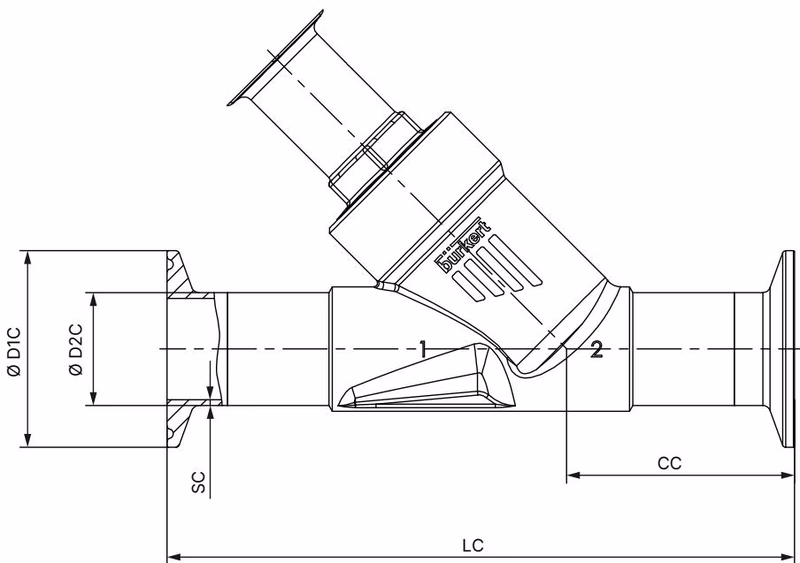

Body with clamp connection

Operating Limits

Application limits for ambient temperature and medium temperature

Pilot air port	Medium temperature for PTFE and PEEK seal [°C]	Ambient temperature [°C]
Push-in connector	-10...+230	-10...+60
Threaded bushing	-10...+230	-10...+100

Optional Variants

• High-temperature variant: Suitable for applications with steam, neutral gases, and other heat transfer mediums up to +230 °C.
• Water variant: For applications with water up to +200 °C, a special configuration of the packing gland increases service life significantly.
• Drinking water variant: Wetted materials are tested for suitability with drinking water up to +85 °C.
• Vacuum variant: Without leakage bore, this design is suitable for pressures down to -0.9 bar(g).
• Low-temperature variant: Suitable for minimum medium temperatures down to -40 °C.
• Variant for oxygen: Non-metallic wetted materials are tested for suitability with oxygen and are suitable for operating pressures up to 25 bar(g) and medium temperatures up to +60 °C.
