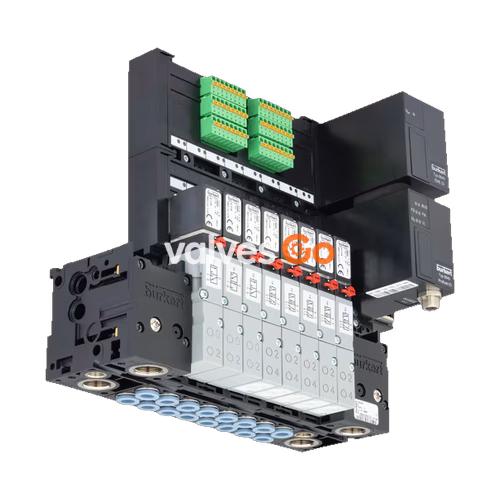

BURKERT 20116362 Type 8640 modular valve island is designed to solve diverse and complex control problems due to its systematic modular construction and combination of pneumatic and electrical interfaces. By putting together a row of pneumatic modules with different numbers of valves, 2 to 24 valve functionalities may be realized on one valve unit. Electrical connectivity for this model is achieved by a multi-pole interface. Bodies and connection modules are made of high-quality plastic (polyamide) and are easy to assemble by means of the built-in snap connectors.
Key Features
- Compact design
- Modular configuration
- Higher flexibility in control cabinet due to AirLINE Quick
- Simple exchange of valves (with option "P-shut-off" – also possible during operation)
General Technical Data (11 mm Width)
The following technical data applies to the 11 mm width per station configuration (utilizing Type 0460, Type 6524, or Type 6525 valves).
| Product properties | Type 0460, Type 6524, Type 6525 (11 mm) |
|---|---|
| Body Material | PA (polyamide), aluminium (Type 0460) |
| Seal Material | FKM, NBR and PUR |
| Width per station | 11 mm |
| Manual override | Standard |
| Number of valve slots | Max. 12 for impulse and double valves (only for multipol plug and fieldbus connection) |
| Maximum number of valve functions | Max. 24 (only for multipol plug and fieldbus connection) |
| Pressure range | Vac...10 bar |
| Operating voltage | 24 V DC (±10% voltage tolerance) |
| Degree of protection | IP20 / IP65 in closed control cabinets |
| Installation position | As required, preferably with actuator upright |
| Ambient temperature | 0 °C...+ 55 °C (when using Type 0460: 0 °C...+ 50 °C) |
Product Connections
Multi-pin Module Valve Outputs
- Max. 24 valves
- Degree of protection IP20
- Electrical connection plug D-Sub (25-pin)
Product Design and Assembly

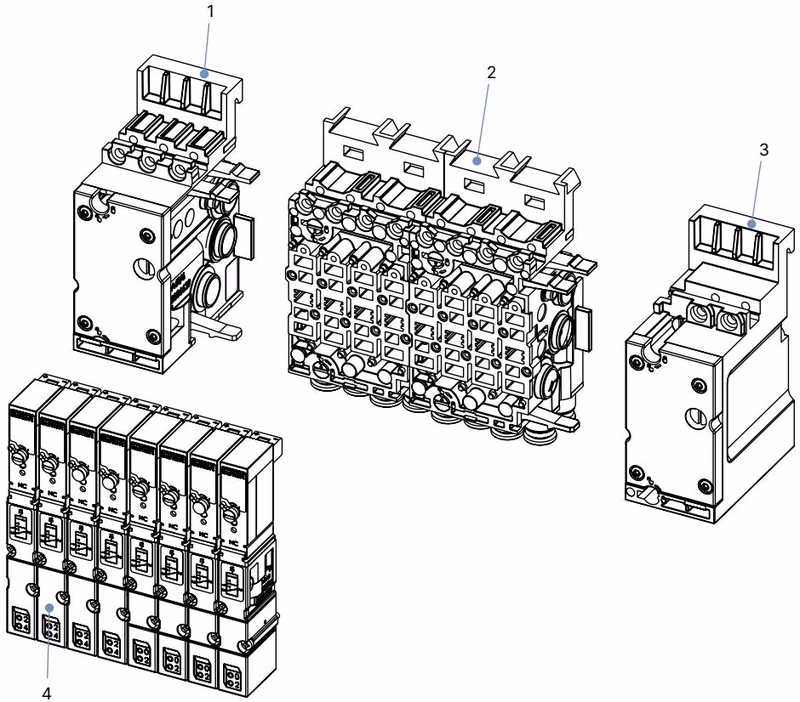

Pneumatics 11 mm Width per Station
| No. | Element |
|---|---|
| 1 | Pneumatic connection module, left |
| 2 | Basic pneumatic modules |
| 3 | Pneumatic connection module, right |
| 4 | Valves (for example 5/2-way) |
Valve Block Installation
| Item | Designation |
|---|---|
| 1 | Electrical connection can be rotated by 180° |
| 2 | Wall mount |
| 3 | Standard rail 35 x 15 or 35 x 7.5 EN 50022 |
| 4 | Connection module |
Standard Rail Installation
- Hook the valve block with the upper groove into the standard rail.
- Snap the lower clamping pieces into the standard rail.
- Tighten the screws on the clamping pieces.
INFO
Standard rail compatibility: EN 50022 35 x 7.5 or 35 x 15.
Wall Installation
Fasten the valve block directly to the wall with M4 screws.
