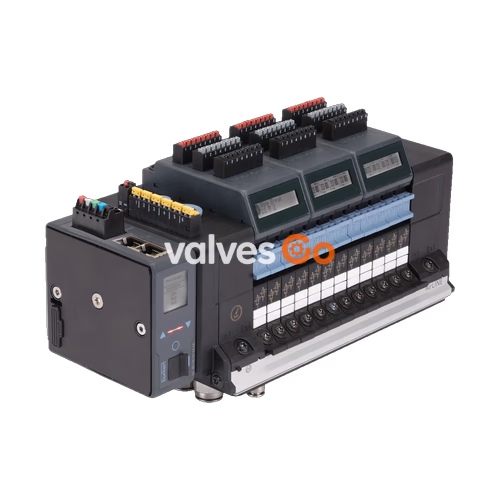

BURKERT Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller. This, therefore, enables a fast overview of the plant status. The hardware is optimised for installation at the bottom of the control cabinet. Installation on a standard rail is, of course, also possible. Moreover, key pneumatic functions ensure increased process reliability. For instance, check valves in the exhaust air ducts make sure there is no unplanned actuation due to pressure peaks.

• Safety-related shut-off of valves possible
• Higher plant availability with PROFINET S2 (system redundancy)
• Process reliability through pneumatic functions
• Optimised for installation at the bottom of the control cabinet
• EX-variants: ATEX / IECEx Zone 2, CCC, cURus HazLoc CL I, II, III Div 2

General Technical Data

Product properties
Material
Body	PA (polyamide)
Seal	NBR and PUR
Width per station	11 mm
Manual override	Latching, spring return (optional: lockable)
Number of valve slots	Max. 24
Maximum number of valve functions	Max. 48
Performance data
Pressure range	Vac...10 bar
External supply air (auxiliary pilot air)	3...10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Nominal operating mode	Continuous operation (100 % duty cycle)
Electrical data
Operating voltage	24 V DC (Voltage tolerance ±10%)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Nominal current of each valve	29 mA (10 mA after power reduction)
Protection class	III according to DIN EN 61140, VDE 0140
Medium data
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Compressed air quality	ISO 8573-1: 2010, Class 7.4.4
Environment and installation
Ambient temperature	-10 °C...+55 °C
Storage temperature	-20 °C...+60 °C

AirLINE Quick

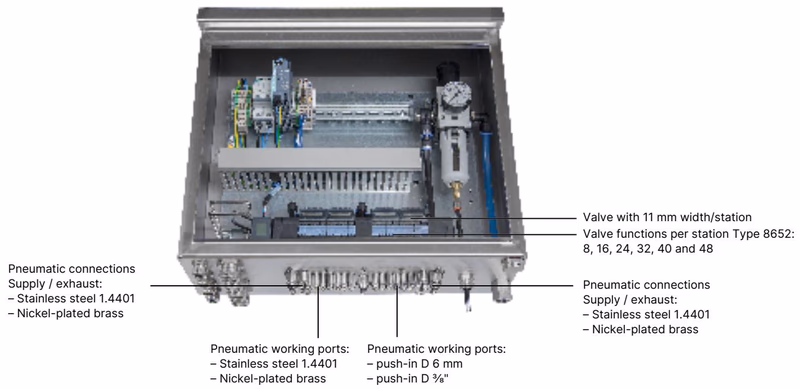

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

• Reduced space requirement in the control cabinet
• This makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Product properties
Material
AirLINE Quick Adapter Plate	Stainless steel 1.4301 / Anodised aluminium
Pneumatic connection	Stainless steel 1.4401 / Nickel-plated brass
Valve functions per station	8, 16, 24, 32, 40 and 48
Product connections
Pneumatic Supply / Exhaust	Push-in D 10 mm, 3/8"
Pneumatic working ports	Push-in D 6 mm, 1/4"

Circuit Functions

Standard Functions

Circuit function	Description
C (CF C)	3/2-way solenoid valve, Servo-controlled, with manual override, Normally closed
C (CF C)	2 × 3/2-way solenoid valve, Servo-controlled, with manual override, Normally closed
D (CF D)	2 × 3/2-way solenoid valve, Servo-controlled, with manual override, Normally open
H (CF H)	5/2-way solenoid valve, Servo-controlled, with manual override
L (CF L)	5/3-way solenoid valve, With manual override, In middle position all ports locked
M (CF M)	5/3-way solenoid valve, Servo-controlled, with manual override, In middle position ports 2 and 4 ventilated
N (CF N)	5/3-way solenoid valve, With manual override, In middle position ports 2 and 4 exhausted
Z (CF Z)	5/2-way solenoid valve, Impulse variant with 2 coils and manual override

SIA Variant (for safety-related shut-off)

Circuit function	Description
C (CF C)	3/2-way solenoid valve, Servo-controlled, Normally closed
C (CF C)	2 × 3/2-way solenoid valve, Servo-controlled, Normally closed
H (CF H)	5/2-way solenoid valve, Servo-controlled
L (CF L)	5/3-way solenoid valve, Servo-controlled, In middle position all ports locked

Approvals and Conformities

Approval	Description
Explosion protection	ATEX: BVS 20 ATEX E 031 U (II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc) IECEx: IECEx BVS 20.0024 U (Ex ec IIC Gc / Ex tc IIIC Dc)
North America	UL Listed for the USA and Canada (UL 61010-1) UL Recognized for Hazardous Locations (Class I, Zone 2 / Class II, Zone 22 / Class I, Div 2)
CCC	China Compulsory Certification (CCC) for hazardous applications in China.

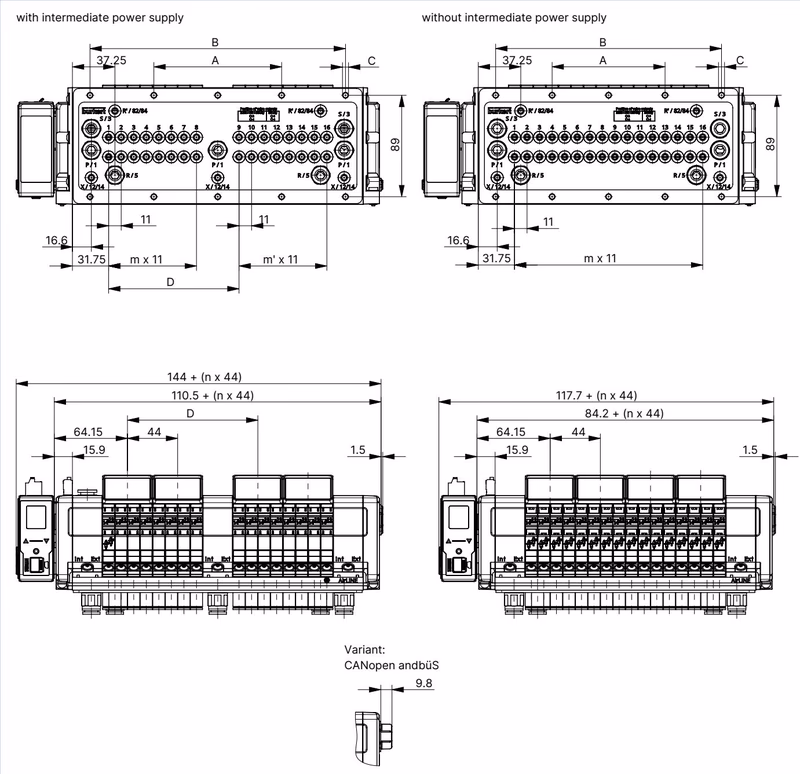

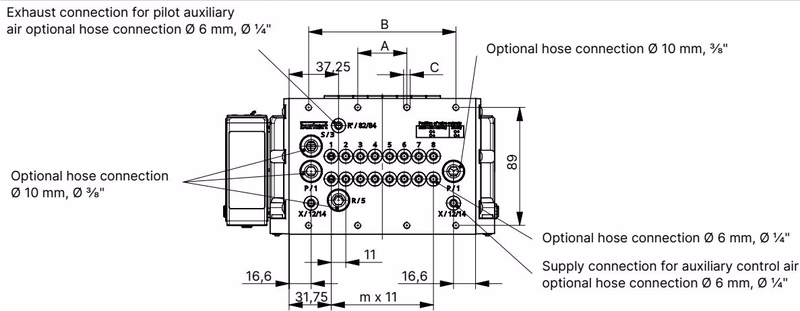

Dimensions

Variant 4-, 8- and 12-fold

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

Variant 16-, 20- and 24-fold

Variant	A	B	C	D	m	m'	n
16-fold with intermediate supply	112	224	10 x M5	114.3	7	7	4
20-fold with intermediate supply	134	268	10 x M5	158.3	11	7	5
24-fold with intermediate supply	156	312	10 x M5	158.3	11	11	6
16-fold without intermediate supply	99	198	10 x M5	-	15	-	4
20-fold without intermediate supply	121	242	10 x M5	-	19	-	5
24-fold without intermediate supply	143	286	10 x M5	-	23	-	6

Product Connections

INFO

Connect 5-pin spring-loaded terminal according to the pin assignment. Possible cable cross-section: ≤ 1.5 mm².

Spring-loaded terminal 5-pin	Colour	Assignment
Power supply for communication and displays	Red	24 V DC
	White	CAN_H (büS connection)
	Green	SHIELDING
	Blue	CAN_L (büS connection)
	Black	GND

Spring-loaded terminal 2-pin	Clip	Colour	Assignment
Power supply for pneumatic valves	1	Red	AUX 24 V
	2	Black	GND

Product Design and Assembly

Electronic Module with Digital Inputs (optional)

The digital inputs are supplied (24 V) by the electronic module. Current is limited to maximum 30 mA per digital input. Standard 3-wire sensors and 2-wire sensors with voltages between 10…30 V as well as mechanical limit switches can be used.

Product properties
Diagnosis	Open-circuit detection with 2-wire sensors, short-circuit detection with 3-wire sensors
Electrical variant	2-wire sensor, 3-wire sensor, mechanical limit switches
Switching threshold	V_OFF = 0...5 V / V_ON = 10...30 V
Input current of V_ON	Max. 5.7 mA per channel (typ. 24 V DC)
Input impedance	>4 KΩ
Galvanic isolation	No, all channels have a common reference potential

Valves Type 6534 for Safety-Related Shut-off, SIA Variant (optional)

Type 6534 valves are equipped with additional connection terminals. A valve circuit can therefore be interrupted by an external switch. Manual override is not required for these valve variants. Technical data of Type 6534 valves, SIA variant correspond to standard device data. To use the shut-off function, connect the terminal to a potential-free contact (mechanical switch or relay).

Safety Instructions for Potentially Explosive Areas

Danger from electrical voltage

• Before intervening in the device or system, switch off the power supply and secure it against being switched on again.
• In an existing explosive atmosphere, connection terminals for 24 V supply, SIA, EVS, and digital inputs may only be plugged in or unplugged when de-energized.
• The use of the Hot Swap function in an existing explosive atmosphere is prohibited.

Danger of explosion due to electrostatic charge

• Take suitable measures to ensure that no electrostatic charge can build up in the potentially explosive area.
• Only clean the device surfaces by wiping them gently with a damp or antistatic cloth.

Special conditions for safe use

• For type of protection "ec": Install the device in an enclosure that meets the requirements of EN/IEC 60079-0 and EN/IEC 60079-7, with a degree of protection of at least IP54.
• For type of protection "tc" (dust): Install the device in an enclosure that meets the requirements of EN/IEC 60079-0 and EN/IEC 60079-31, with a degree of protection of at least IP6X.
• Only use the device in an area of at least pollution degree 2 as defined in IEC 60664-1.
