BURKERT 20127897 Type 6519 is a servo-assisted 5/2-way pneumatic solenoid valve. Together with Type 6518, they form a series of pilot-operated valves that can be used individually or on blocks. They operate without continuous air consumption and are used to control single- or double-acting actuators. The use of high-quality materials allows the valves to be used even in outdoor and chemically aggressive environments.

General Technical Data

Product properties	Description
Seal	NBR and PUR (5/2-way)
Body	Pilot valve: Polyamide, reinforced glass-fibre Main valve: Polyamide (5/2-way)
Threaded bushing	Brass
Orifice	6.0 mm
Circuit function	W (normally open)
Thermal insulation class	Polyamide coil class B
Compressed air quality	ISO 8573-1:2010, class 7.4.4
Duty cycle	100 % continuous operation
Operating medium	Neutral medium (e.g. lubricated or oil-free compressed dry air)
Electrical connection	Plug contacts according to DIN EN 175301-803 form C
Pneumatic connection	Threaded G 1/4, flange-mountable
Degree of protection	IP65 with cable plug
Installation position	As required, preferably with actuator upright

WARNING

To prevent freezing of the expanded compressed air, the pressure dew point must be at least 10 K lower than the temperature of the medium.

Standard Variant Features

The Type 6519 standard variant features a valve width of 32 mm, allowing for high flow rates up to 900 l/min.

Feature	Specification
Weight	322 g (5/2-way)
Switching time (Opening)	20 ms
Switching time (Closing)	40 ms
Operating voltage	24 V DC
Power consumption (Hold)	DC: 1.7 W
Medium temperature	-10 °C to +55 °C
Ambient temperature	-25 °C to +55 °C

Circuit Functions

Symbol	Description
	Circuit function W (CF W) 5/2- or 3/2-way solenoid valve with changeover plate. 5/2-way: Pressurisation via port (1). Therefore one of the two ports (2) or (4) is under pressure. 3/2-way: Pressurisation via port (1), normally closed.

Dimensions

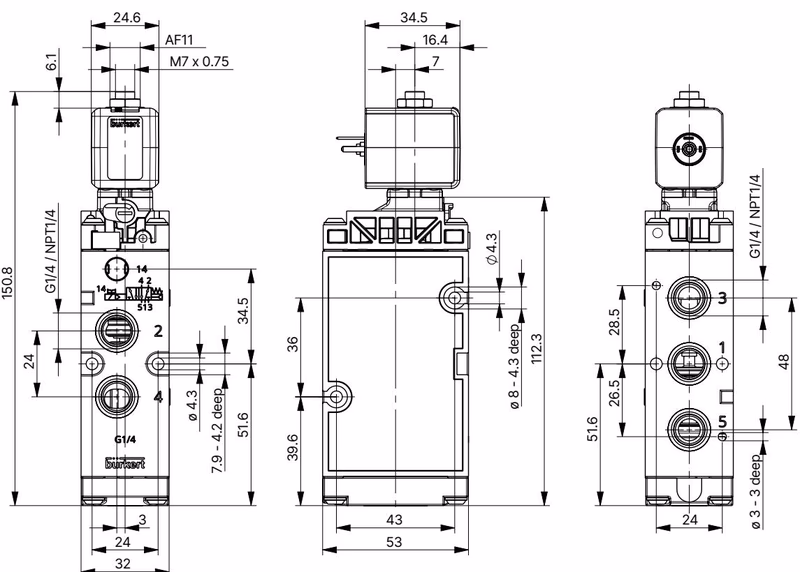

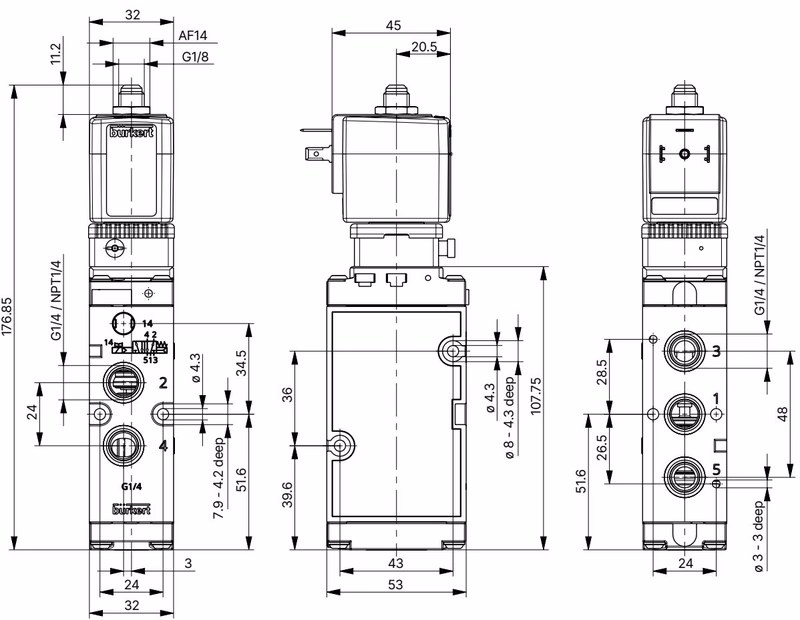

Standard variant 5/2-way valve, circuit function H/W with plug form C(Dimensions in mm)
