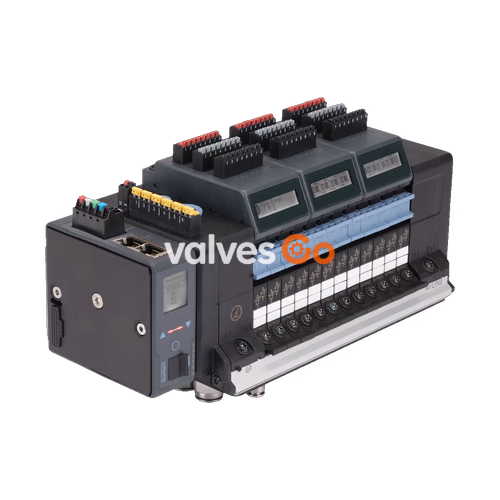

BURKERT 351209 Type 8652 AirLINE valve island has been especially developed for process automation requirements. New diagnostic functions can be visualised on the LC display, both in clear text as well as symbols. This makes it easy to relate to the shown messages and helps to save time during start-up and maintenance. Furthermore, the diagnostic message is also available at the controller. This, therefore, enables a fast overview of the plant status. The hardware is optimised for installation at the bottom of the control cabinet. Installation on a standard rail is, of course, also possible. Moreover, key pneumatic functions ensure increased process reliability. For instance, check valves in the exhaust air ducts make sure there is no unplanned actuation due to pressure peaks.

• Safety-related shut-off of valves possible
• Higher plant availability with PROFINET S2 (system redundancy)
• Process reliability through pneumatic functions
• Optimised for installation at the bottom of the control cabinet
• EX-variants: ATEX / IECEx Zone 2, CCC, cURus HazLoc CL I, II, III Div 2

General Technical Data

Product properties
Body Material	PA (polyamide)
Seal Material	NBR and PUR
Width per station	11 mm
Number of valve slots	Max. 24 (Model 351209 features 12 ports)
Maximum number of valve functions	Max. 48
Pressure range	Vac...10 bar
Flow rate QNn value air	310 l/min (measured at +20 °C, 6 bar pressure at valve inlet and 1 bar differential pressure)
Operating voltage	24 V DC
Protection class	III according to DIN EN 61140, VDE 0140
Degree of protection	IP20, IP65 in closed control cabinets

AirLINE Quick

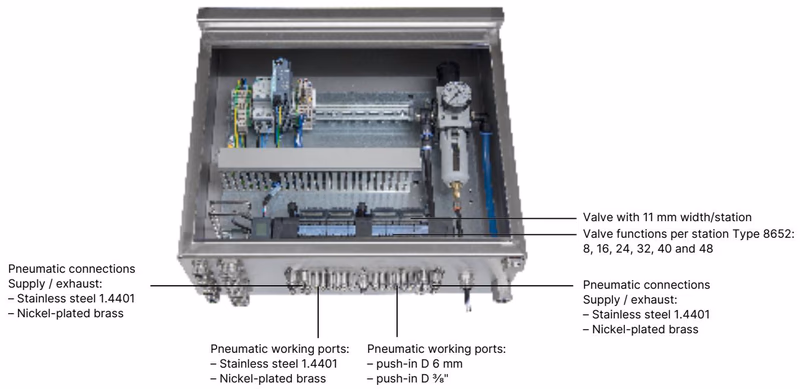

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages:

• Reduced space requirement in the control cabinet
• This makes it possible to use more compact control cabinets
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet

Circuit Functions

Symbol	Description
CF C	3/2-way solenoid valve, Servo-controlled, Normally closed
CF D	2 × 3/2-way solenoid valve, Servo-controlled, Normally open
CF H	5/2-way solenoid valve, Servo-controlled, Pressure applied via port (1)
CF L	5/3-way solenoid valve, In middle position all ports locked
CF M	5/3-way solenoid valve, In middle position ports 2 and 4 ventilated
CF N	5/3-way solenoid valve, In middle position ports 2 and 4 exhausted
CF Z	5/2-way solenoid valve, Impulse variant with 2 coils

Dimensions

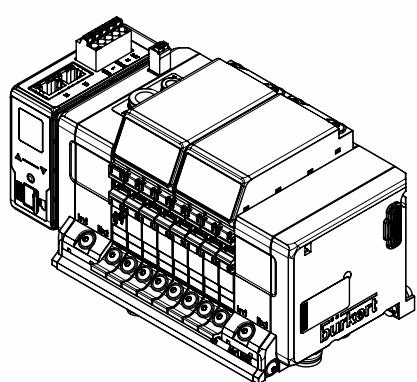

For the 12-fold variant (Model 351209):

Variant	A	B	C	m	n
4-fold	66	-	4 x M5	3	1
8-fold	35	111	8 x M5	7	2
12-fold	77	154	10 x M5	11	3

Product Connections

PROFIBUS DPV1 D-Sub socket 9-pin

Pin	Assignment
1	SHIELDING
2	M24 (optional)
3	RxD/TxD-P (B-line)
4	CNTR-P (optional)
5	DGND
6	+5 V (supply for terminating resistor)
7	+24 V (optional)
8	RxD/TxD-N (A-line)
9	CNTR-N (optional)

Explosion Protection Safety Notes

• Do not connect or disconnect when energized in hazardous locations.
• For explosion protection type "ec", install the device in an enclosure suitable for the protection class (e.g., IP54).
• Ensure transient protection does not exceed 140% of the peak rated voltage.
• The Hot Swap function is prohibited in a currently explosive atmosphere.
