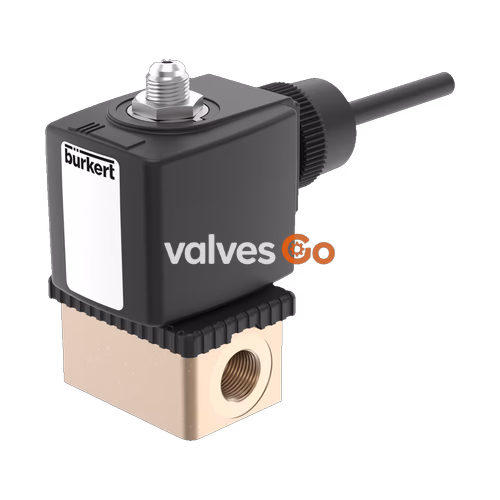

BURKERT Type 6014 is a direct-acting plunger valve. The stopper and core guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. A Bürkert-specific flange variant (SFB) enables space-saving arrangement of valves on a manifold. The coils are moulded with polyamide or with chemically resistant epoxy. Kick and Drop coils are available for the reduction of electrical power consumption during operation.

Optional manual override enables quick commissioning and easy maintenance. In combination with a plug in accordance with DIN EN 175301-803 Form A, the valves satisfy protection class IP65. Stainless steel valves satisfy NEMA 4X.

General Technical Data

Feature	Specification
Orifice	DN 1.5 to DN 2.5
Circuit function	C, D and T
Body material	Brass, stainless steel 1.4305/303, polyamide (sub-base)
Seal material	FKM (EPDM on request)
Coil material	Polyamide (epoxy on request)
Thermal insulation class	Polyamide coil class B, Epoxy coil class H
Operating voltage	24 V DC, 24 V 50 Hz, 24 V 60 Hz, 110 V 50 Hz, 120 V 60 Hz, 230 V 50 Hz, 240 V 60 Hz (other voltages on request)
Voltage tolerance	±10%
Duty cycle	100% continuous operation. Intermittent operation 60% (30 min) or with 5 W coil (on request)
Operating medium	Technical vacuum, neutral gases and liquids (e.g. compressed air, town gas, natural gas, water, hydraulic oil, petrol)
Viscosity	Max. 21 mm²/s
Ambient temperature	Max. +55 °C
Installation position	As required, preferably with actuator upright

Approvals and Conformities

Depending on the variant, Type 6014 is available with various approvals including ATEX/IECEx (Zone 1/21 and Zone 2/22), UL Listed/Recognized, CSA, FM, CRN, FDA, USP, and DNV GL classification for ships and offshore units.

Circuit Functions

Circuit Function	Description
C (CF C)	3/2-way solenoid valve, Direct-acting, Normally closed
D (CF D)	3/2-way solenoid valve, Direct-acting, Normally open
T (CF T)	3/2-way solenoid valve, Direct-acting, Flow direction optional, Normally closed

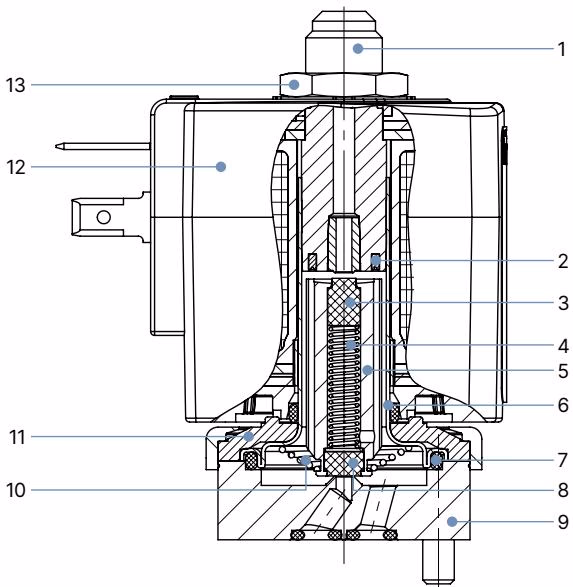

Materials

Standard Variant

No.	Element	Material
1	Stopper	Stainless steel 1.4105/430F
2	Shading ring	Cu (brass variant), Ag (stainless steel variant)
3	Plunger seal	FKM
4	Spring	Stainless steel 1.4310/301
5	Magnetic core	Stainless steel 1.4105/430F
6	Core guide tube	Stainless steel 1.4303/305/308
7	O-ring	FKM
8	Plunger seal	FKM
9	Valve body	Brass, Stainless steel 1.4305/303, Stainless steel 1.4401/316
10	Spring	Stainless steel 1.4310/301
11	Sub-base	Steel, surface finish thick-film passivated (brass variant), Stainless steel 1.4301/304 (stainless steel variant)
12	Coil	PA (Polyamide), Epoxy (High temperature variant)
13	Nut	Steel, surface finish thick-film passivated (brass variant), Stainless steel 1.4305/303 PTFE coated (stainless steel variant)

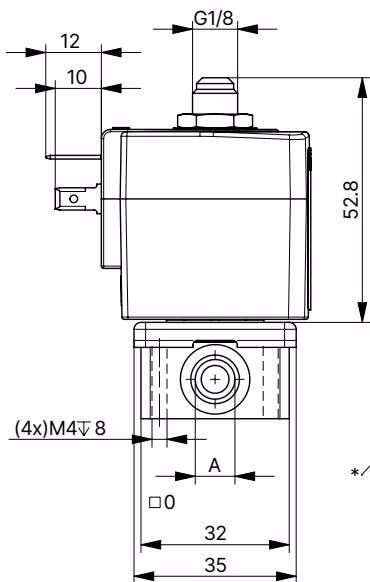

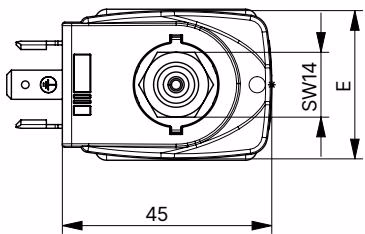

Dimensions

Standard Variant

TIP

Dimensions in mm.

Performance Specifications

Power Consumption

Orifice [mm]	Coil power [W]	Power consumption Inrush AC [VA]	Power consumption Hold AC [VA/W]	Response times Opening [ms]	Response times Closing [ms]
1.5	8 W AC or 8 W DC (9)	24	8	10...15	15...20
2.0	8 W AC or 8 W DC (9)	24	8	10...15	15...20
2.5	8 W AC or 8 W DC (9)	24	8	15...20	10...22

(Measurement at +20 °C, 6 bar at the valve outlet, opening: pressure build-up 0...90%, closing: pressure reduction 100...10%)

Utilisation in Another Circuit Function

The valves are equipped with different springs for specific circuit functions. When used with other circuit functions, the permissible operating pressure changes according to the following table.

DN	Circuit function	Max. operating pressure [bar] A	Max. operating pressure [bar] B	Max. operating pressure [bar] C	Max. operating pressure [bar] D	Max. operating pressure [bar] T
1.5	C	16	22	16	2	2
	D	2	2.5	2	16	2
	T	10	16	10	6	6
2.0	C	10	14	10	1	1
	D	1	1.5	1	10	1
	T	6	10	6	4	4
2.5	C	6	9	6	0.7	0.7
	D	0.7	1	0.7	6	0.7
	T	3.5	6	3.5	2.5	2.5
