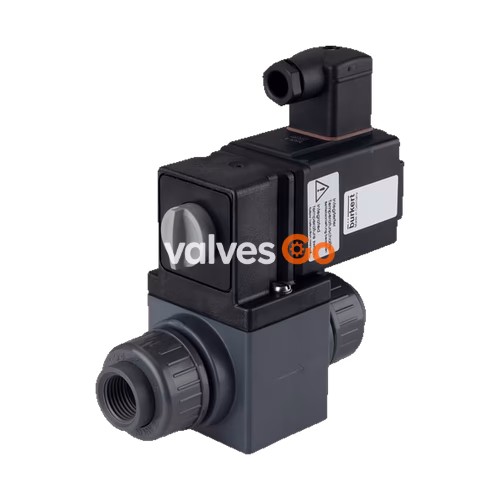

Bürkert 49222 (Type 0131) is a direct-acting toggle valve designed for the safe control of aggressive media. This 2/2-way normally closed (NC) solenoid valve features a PVC body and EPDM seals, making it highly suitable for handling alkaline solutions and other challenging fluids. The valve utilizes a diaphragm separation between the actuator and the valve body to ensure the media remains isolated from the internal solenoid components. It is equipped with a G 3/4 internal thread connection, a 20 mm orifice, and operates on 24V AC/DC with integrated "Kick and Drop" energy-saving electronics.

Key Features

• Media Separation: Direct-acting media-separated valve up to DN 20.
• Robust Construction: Vibration-proof, block screwed solenoid system with solenoids moulded in highly resistant chemical epoxy.
• Energy Efficiency: "Kick and drop" electronics are moulded into the DC solenoid variants for reduced electrical power consumption.
• Manual Override: Robust, service-friendly manual override with locking function.

Circuit Function

Circuit function A (CF A) 2/2-way solenoid valve, direct-acting, normally closed.

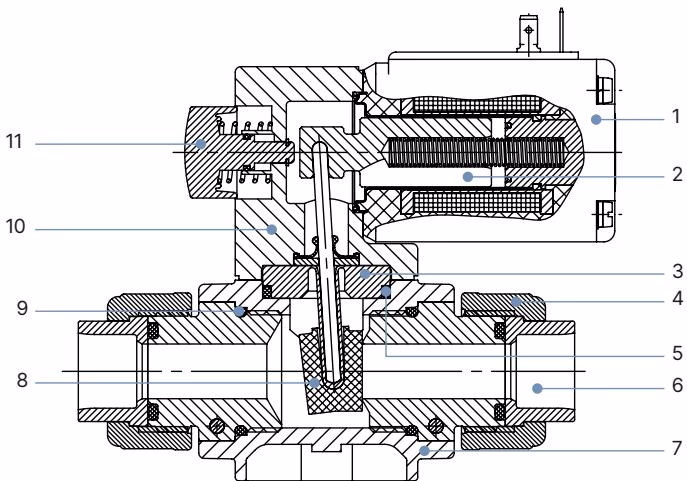

Materials

The 49222 model is a 2/2-way plastic variant with a connection fitting.

No.	Element	Material
1	Coil	Epoxy
2	Plunger	Stainless steel 1.4105
3	Toggle pin	PTFE
4	True union nut	PVC
5	O-ring	EPDM
6	Connection fitting	Threaded
7	Body	PVC
8	Closing body	EPDM
9	O-ring	EPDM
10	Lateral flange	PC
11	Manual override	With locking function

Dimensions

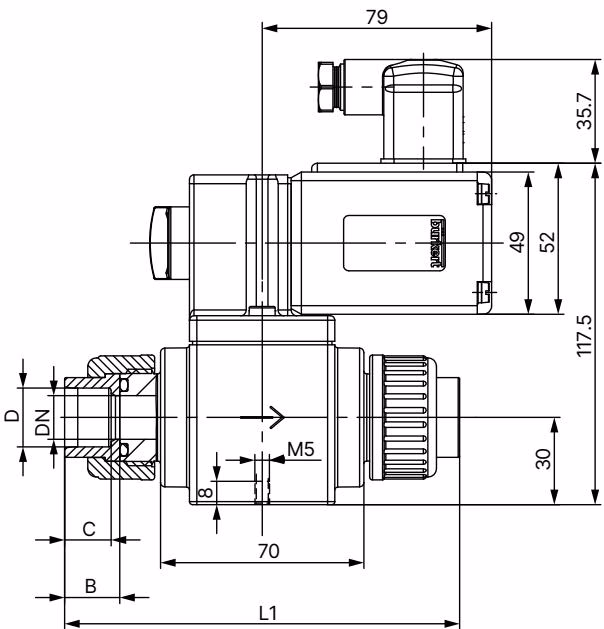

Dimensions for the 2/2-way plastic variant with connection fitting (in mm).

Material	DN	Connection	B	C	D	L1	L2
PVC	20	Threaded	22	15	G 3/4	144	107.0

Installation and Operation

Installation Position

The valve can be installed in any position, but it is preferably mounted with the actuator face up.

Installation Precautions

• The valve body must not be installed under tension.
• Seal material must not get into the device.
• Pay attention to flow direction: The arrow or letters on the body indicate the flow direction from P → A (NC).
• Do not use the coil as a lever arm.

Electrical Safety

Before working on the device or the system, switch off the power supply and secure against reactivation. Always connect the protective conductor and check electrical continuity. If there is no protective conductor function between the coil and the body, there is a risk of electric shock.

Manual Override

When the manual override is locked, the valve can no longer be electrically actuated.

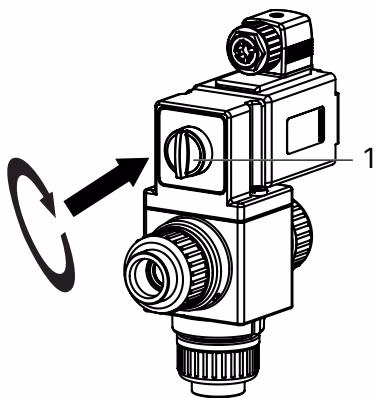

▶ To override the valve manually, press the manual override (1) and turn it 90° clockwise until it stops.

Caution

Loss of O-rings leads to valve leakage. Medium may escape.
