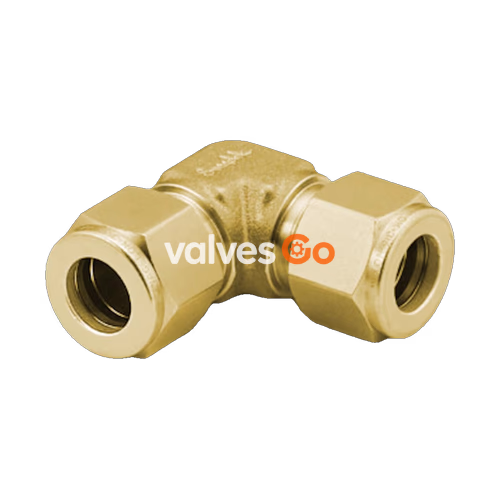

Swagelok B-1010-9 is a brass tube fitting designed as a union elbow for 5/8 in. tube OD. It features standard cleaning and packaging (SC-10) and provides reliable, leak-tight connections for tubing systems.
Specifications
| Specification | Value |
|---|---|
| Body Material | Brass |
| Bored Through | No |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 5/8 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 5/8 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| Flow Restrictor | No |
| eClass (4.1) | 37030705 |
| eClass (5.1.4) | 37020501 |
| eClass (6.0) | 37020590 |
| eClass (6.1) | 37020501 |
| eClass (10.1) | 37020501 |
| UNSPSC (4.03) | 40142601 |
| UNSPSC (10.0) | 40142606 |
| UNSPSC (11.0501) | 40142604 |
| UNSPSC (13.0601) | 40183101 |
| UNSPSC (15.1) | 40183101 |
| UNSPSC (17.1001) | 40183101 |
90° Elbows
Enables sharp directional tube changes with minima footprint, ensuring leak-tight performance and structural integrity in dynamic system layouts.
WARNING
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
