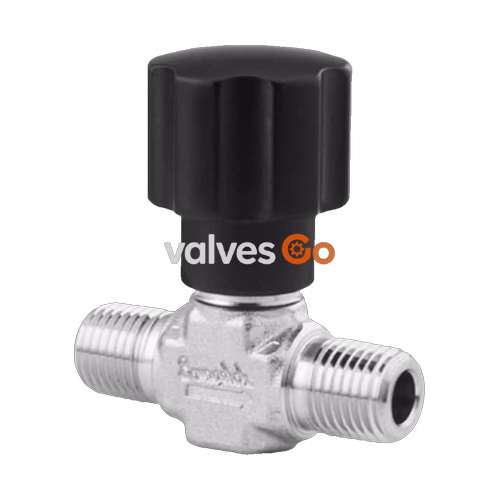

Swagelok M-14DKM4 integral-bonnet needle valves are compact needle valves available in a full range of sizes, configurations, and materials for a variety of applications. This valve features a straight pattern and a non-rotating stem.
Specifications
| Specification | Value |
|---|---|
| Body Material | Alloy 400 |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Male NPT |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Male NPT |
| CV Maximum | 0.37 |
| Low Emissions Certified | Yes |
| Maximum Temperature, °F (℃) | 500 (260) |
| Max Temperature Pressure Rating | 500°F @ 2375 PSIG / 260°C @ 163 BAR |
| Minimum Temperature, °F (°C) | -65 (-53) |
| Stem Tip Material | PCTFE |
| Stem Type | Soft-Seat PCTFE |
| eClass (4.1) | 37010201 |
| eClass (5.1.4) | 37010201 |
| eClass (6.0) | 37010203 |
| eClass (6.1) | 37010203 |
| eClass (10.1) | 37010203 |
| UNSPSC (4.03) | 40141602 |
| UNSPSC (10.0) | 40141602 |
| UNSPSC (11.0501) | 40141602 |
| UNSPSC (13.0601) | 40141602 |
| UNSPSC (15.1) | 40141602 |
| UNSPSC (17.1001) | 40141602 |
WARNING
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
