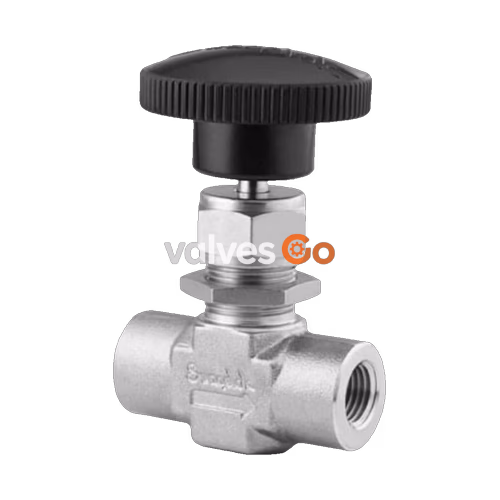

Swagelok SS-1KF4 stainless steel integral bonnet needle valve. Integral-bonnet needle valves are compact needle valves available in a full range of sizes, configurations, and materials for a variety of applications. This straight pattern model features a soft seat PCTFE stem tip.
Specifications
| Specification | Value |
|---|---|
| Body Material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/4 in. |
| Connection 1 Type | Female NPT |
| Connection 2 Size | 1/4 in. |
| Connection 2 Type | Female NPT |
| CV Maximum | 0.73 |
| Flow Pattern | Straight (2-way) |
| Handle Style | Phenolic Knob |
| Low Emissions Certified | Yes |
| Maximum Temperature, °F (°C) | 200 (93) |
| Max Temperature Pressure Rating | 200°F @ 4295 PSIG /93°C @ 296 BAR |
| Minimum Temperature, °F (°C) | -65 (-53) |
| Orifice | 0.250 in |
| Room Temperature Pressure Rating | 5000 PSIG @ 100°F /344 BAR @ 37°C |
| Stem Tip Material | PCTFE |
| Stem Type | Soft-Seat PCTFE |
| eClass (4.1, 5.1.4) | 37010201 |
| eClass (6.0, 6.1, 10.1) | 37010203 |
| UNSPSC (4.03, 10.0, 11.0501, 13.0601, 15.1) | 40141602 |
| UNSPSC (17.1001) | 40183102 |
WARNING
The complete catalog contents must be reviewed to ensure that the system designer and user make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance. Function material compatibility, adequate ratings, proper installation operation, and maintenance are the responsibilities of the system designer and user.
Do not mix/interchange Swagelok products or components not governed by industrial design standards, including Swagelok tube fitting end connections, with those of other manufacturers.
