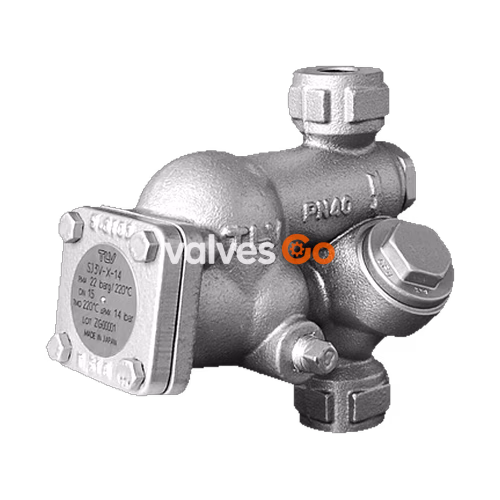

TLV SJ3V-X is a reliable and durable free float steam trap with tight shut-off, designed for use on small to medium process equipment. This model features a ductile cast iron body and is specifically designed for vertical piping installation.

Features

1. Self-modulating free float provides continuous, smooth, low velocity condensate discharge as process loads vary.
2. Precision-ground float, constant water seal and three-point seating design ensure a steam-tight seal, even under no-load conditions.
3. Thermostatic capsule (X-element) with “fail open” feature vents air automatically until close-to-steam temperature.
4. Built-in screen with large surface area ensures extended trouble-free operation.
5. Easy, inline access to internal parts simplifies cleaning and reduces maintenance costs.

Pressure Equipment Directive (PED)

Classification according to PED 2014/68/EU, fluid group 2.

Size	Category
1/2", 3/4", 1"	Art. 4, Sec. 3 (sound engineering practice), CE marking not allowed*

* Manufactured in accordance with sound engineering practice.

Specifications

Model	SJ3V-X
Installation	Vertical
Connection	Screwed
Size	1/2", 3/4", 1"
Orifice No.	2, 5, 9, 14, 22
Maximum Operating Pressure (barg) PMO	2, 5, 9, 14, 22
Maximum Differential Pressure (bar) ΔPMX	2, 5, 9, 14, 22
Maximum Operating Temperature (°C) TMO	220
Subcooling of X-element Fill (°C)	up to 6
Type of X-element	C6

Pressure Shell Design Conditions

Maximum Allowable Pressure (barg) PMA: 22 Maximum Allowable Temperature (°C) TMA: 220 Minimum Allowable Temperature (°C): 0

WARNING

To avoid abnormal operation, accidents or serious injury, DO NOT use this product outside of the specification range. Local regulations may restrict the use of this product to below the conditions quoted.

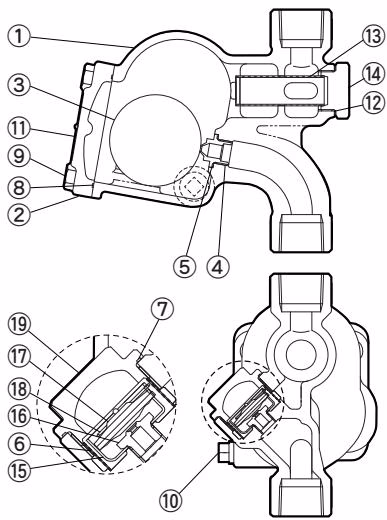

Materials

No.	Description	Material	DIN	ASTM/AISI*
1	Body	Ductile Cast Iron EN-GJS-400-18-LT	0.7043	A395 Gr.60-40-18
2	Cover	Ductile Cast Iron EN-GJS-400-18-LT	0.7043	A395 Gr.60-40-18
3	Float	Stainless Steel SUS316L	1.4404	AISI316L
4	Orifice	-	-	-
5	Orifice Gasket	Fluorine Resin PTFE	-	-
6	Air Vent Screen	Stainless Steel SUS304	1.4301	AISI304
7	X-element Cover Gasket	Fluorine Resin PTFE	-	-
8	Cover Gasket	Fluorine Resin PTFE	-	-
9	Cover Bolt	Carbon Steel S45C	1.0503	AISI1045

* Equivalent materials. Replacement kits available: (M) maintenance parts, (R) repair parts, (F) float.

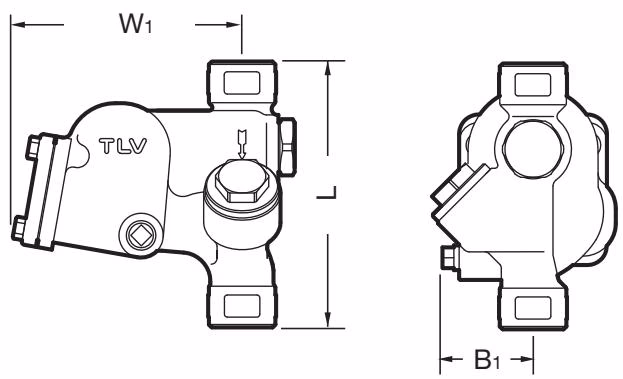

Dimensions

Size	L	W	B**	Weight (kg)
1/2"	180	155	70	4.0
3/4"	180	155	70	4.0
1"	180	155	70	4.0

* Screwed: BSP DIN 2999, other standards available. ** Approx.

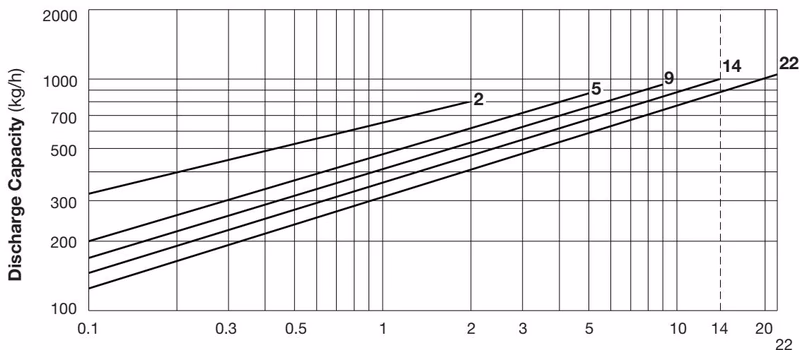

Discharge Capacity

1. Line numbers within the graph refer to orifice numbers.
2. Differential pressure is the difference between the inlet and outlet pressure of the trap.
3. Capacities are based on continuous discharge of condensate 6 °C below saturated steam temperature.
4. Recommended safety factor: at least 1.5.

DANGER

DO NOT use this product under conditions that exceed maximum differential pressure, as condensate backup will occur!
