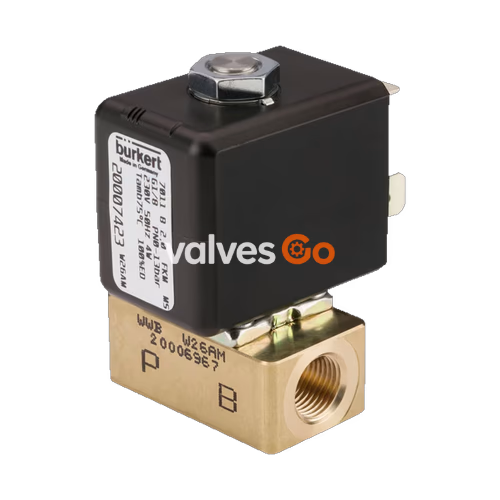

BURKERT 20060323 Type 7011 Direct-Acting 2/2-Way Plunger Valve

BURKERT 20060323 Type 7011 direct-acting 2/2-way plunger valve. Features G1/8 internal thread, brass body, FKM seal, 24V DC, and 0-3.5 bar pressure range.

BURKERT 20060323 Type 7011 Direct-Acting 2/2-Way Plunger Valve

BURKERT Type 7011 is a direct-acting and compact small plunger valve up to DN 2.4. The stopper and the core guide tube are welded together to increase pressure resistance and leak-tightness. Various housing and seal material combinations are available depending on the actual application. A Bürkert-specific flange variant (SFB) enables the space-saving arrangement of valves on a multiple manifold. The range is supplemented by variants conforming to DVGW EN 161 and explosion-proof variants. Push-in fittings can be selected for a flexible hose connection. In combination with a plug conforming to DIN EN 175301-803 shape B, the valves satisfy degree of protection IP65.

General Technical Data

Product propertiesSpecification
OrificeDN 1.2...DN 2.4
Circuit functionA (Normally closed) and B (Normally open)
Thermal insulation classEpoxy coil class H
Seal materialFKM, EPDM
Body materialBrass, polyamide (PA), stainless steel 1.4305/303
Duty cycle100 % resp. 50 % continuous operation (Single valve)
Switching timeOpening: 8...15 ms, Closing: 10...17 ms
Operating voltage24 V DC, 24 V 60 Hz, 110 V 50 Hz, 120 V 60 Hz, 230 V 50 Hz, 240 V 60 Hz
Voltage tolerance± 10 %
Operating mediumNeutral gases and liquids (e.g. compressed air, water, hydraulic oil, technical vacuum)
Medium temperature-10 °C...+100 °C
ViscosityMax. 21 mm²/s
Degree of protectionIP65 with cable plug and ATEX/IECEx cable variant
Installation positionAs required, preferably with actuator upright

Circuit Functions

Circuit FunctionDescription
A (CF A)2/2-way solenoid valve, Direct-acting, Normally closed
B (CF B)2/2-way solenoid valve, Direct-acting, Normally open

Approvals and Conformities

  • Explosion protection: ATEX (II 2G Ex mb IIC T4 Gb, II 2D Ex mb IIIC T130 °C Db) and IECEx (Ex mb IIC T4 Gb, Ex mb IIIC T130 °C Db).
  • North America (USA/Canada): UL Recognized according to UL 429 and CAN/CSA-C22.2 No. 139.
  • Drinking water: Suitable for use in drinking water applications. Materials comply with the assessment principles (UBA).
  • Foods and beverages/Hygiene: FDA compliant, USP biocompatible, and compliant with EC Regulation 1935/2004.
  • Fuel gases: Complies with Regulation (EU) 2016/426, DVGW DIN EN 161, and DIN EN 16678.

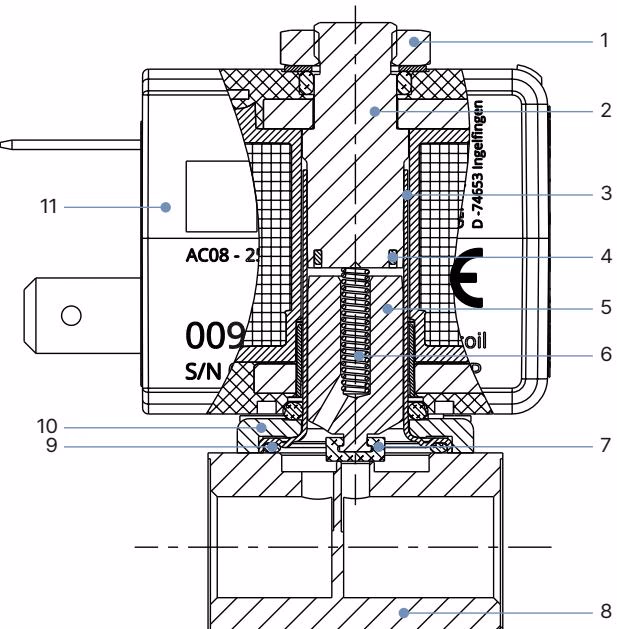

Material Specifications

Standard variant circuit function A:

BURKERT 20060323 BURKERT Type 7011 material specifications and components

No.ElementMaterial
1NutDIN 176 Surface finish thick film passivated KOSA0101
2StopperStainless steel 1.4113/434
3Core guide tubeStainless steel 1.4303 ST/305L
4Shading ringCopper (optional silver)
5CoreStainless steel 1.4113/434
6SpringStainless steel 1.4310/301
7SealFKM/EPDM
8Valve bodyBrass, stainless steel 1.4305/303, PA (polyamide)
9O-ringFKM/EPDM
10FlangeSurface finish thick film passivated KOSA0101 (brass variant), Nickel-plated surface (stainless steel variant)
11CoilEpoxy

Dimensions

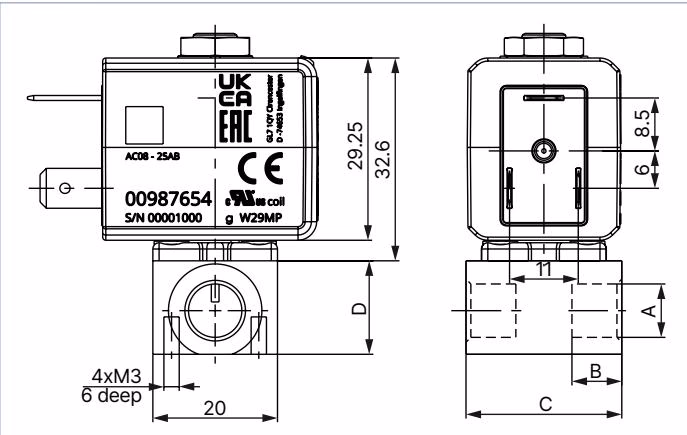

Threaded Variant

Dimensions in mm. Variants according to industry standard form B.

BURKERT 20060323 BURKERT Type 7011 threaded variant dimensions

Port connectionA [mm]B [mm]C [mm]D [mm]
Thread CF A (M5)M552010
Thread CF A (G 1/8)G 1/882515
Thread CF A (NPT 1/8)NPT 1/872515
Thread CF B (G 1/8)G 1/883414
Thread CF B (NPT 1/8)NPT 1/873414

Flange Variant

Dimensions in mm. Variants according to industry standard form B.

BURKERT 20060323 BURKERT Type 7011 flange variant dimensions

Port connectionA [mm]B [mm]C [mm]D [mm]
Flange CF A--2010
Flange CF B--2515

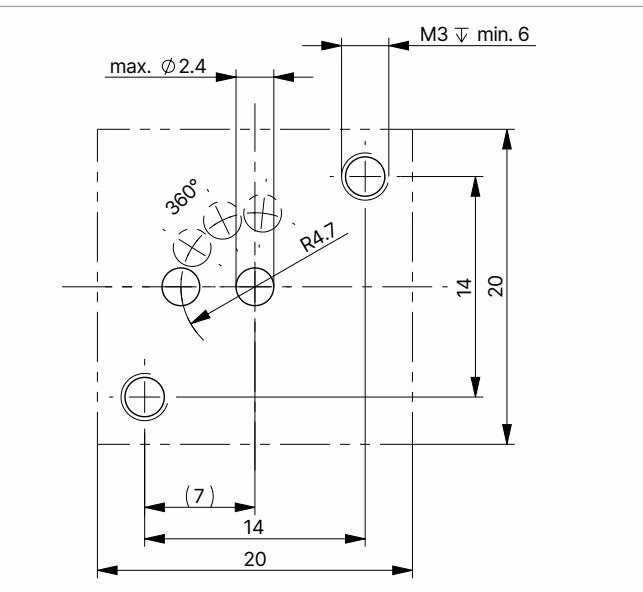

Flange Pattern

On the connection side, the geometries are to be realised as shown in the following drawing. Flange variant (FK01) according to FST 1000225877.

BURKERT 20060323 BURKERT Type 7011 flange pattern geometry

Safety Instructions

  • Risk of injury from high pressure: Before working on the system or device, switch off the pressure and ventilate and empty the lines.
  • Risk of injury from electric shock: Before working on the system or device, switch off the power supply and secure against reactivation. Observe the applicable accident prevention and safety regulations for electrical devices.
  • Risk of burns/fire: The solenoid coil can become very hot during continuous operation. Keep the device away from highly flammable substances and media and do not touch with bare hands.
