BURKERT Type 3361 (SKU 20076065) is an innovative electromotive 2-way globe control valve designed for demanding operating conditions. The electromotive actuator with a ball screw positions the control cone with the highest precision. A unique feature is its high positioning speed of up to 6 mm/s, which reacts almost delay-free to process signals and can be varied according to customer demands. Pressure variations or shocks in the medium are not transferred to the valve position.

Each flow-optimized valve body can be equipped with up to 5 different valve seats for precise adaptation to customer needs. The actuator and valve are perfectly adapted to each other with a closed design and robust surface, ensuring the hygienic requirements of fast and residue-free cleaning. Harsh environmental conditions are no problem for the Type 3361 due to its IP65/IP67 degree of protection and high impact and vibration resistance. The fieldbus-compatible Type 3361 provides many helpful functions for process monitoring, valve diagnostics, and predictive maintenance.

General Technical Data

Product Properties	Description
Design	Globe control valve
Nominal diameter	DN 10...DN 100, NPS 3/8...4
Safety setting in case of power failure	With energy storage SAFEPOS energy-pack: open, closed or freely programmable position. Without energy storage: blocked in last position
Flow direction	Against closing direction (below seat)
Controller variant	Positioner or process controller (option)
Operating pressure	0...25 bar(g), 40 bar(g) on request. Vacuum variant down to -0.9 bar(g) (optional)
Nominal pressure	PN 25/PN 40 (DIN EN 1333), Class 150 (DIN EN 1759)
Flow characteristic	Equal percentage, linear (on request)
Seat leakage	Class III, IV and VI (DIN EN 60534-4)
Theoretical rangeability	Up to 50:1
Operating voltage	24 V DC ± 10 % (maximum residual ripple 10 %)
Fieldbus (digital)	Bürkert system bus (büS), CANopen (optional), EtherNet/IP, PROFINET, Modbus TCP, EtherCAT (optional via integrated gateway)
Degree of protection	IP65/IP67 (DIN EN 60529), NEMA 4X

Approvals and Conformities

• Explosion protection: Optional ATEX / IECEx (Zone 2/22, Category 3 device).
• North America: Optional UL Listed for the USA and Canada.
• Drinking water: Optional suitability for drinking water applications (up to +85 °C).
• Foods and beverages/Hygiene: FDA, USP, EC Regulation 1935/2004, China food GB Standards.
• Others: Optional suitability for Oxygen, Hydrogen, and TA Luft.

Materials

INFO

The Type 3361 globe control valve is supplied with different port connections (flange, thread, weld end, and clamp connections). They correspond to the valve body material.

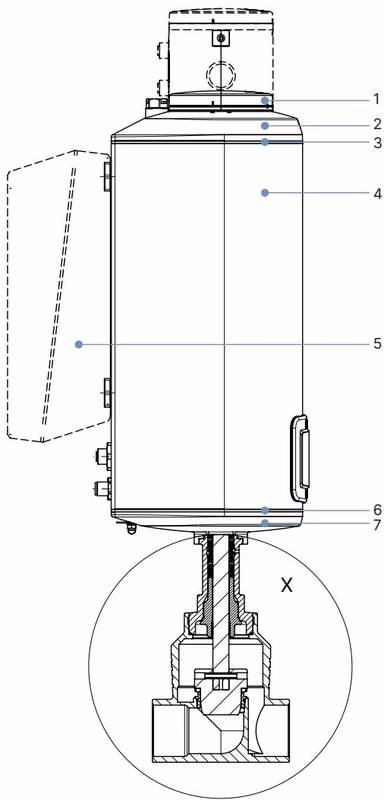

AG2 Actuator Materials

No.	Component	Material
1	Display housing/blind cover/gateway housing	PPS (standard), stainless steel 1.4301 (for ATEX/IECEx)
2	Actuator cover	PPS
3	Seal	EPDM
4	Actuator housing	Powder-coated aluminium
6	Seal	EPDM
7	Actuator base	PPS

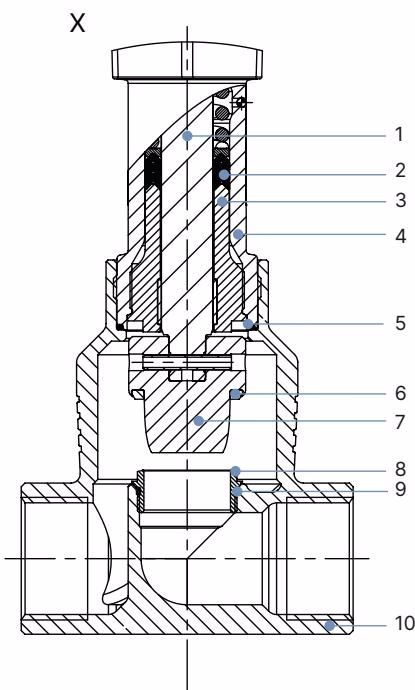

Valve Body Materials

No.	Component	Material
1	Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
2	Spindle seal	PTFE V-seals (filled) with spring compensation
3	Spindle guide	Stainless steel 1.4404 (316L)
4	Packing gland tube	Stainless steel 1.4401 (316)
5	Seal valve body	Graphite or PTFE
6	Seat seal	Stainless steel 1.4571 (optionally hardened), PTFE or PEEK seal washer
7	Control cone	Stainless steel 1.4571 (optionally hardened)
8	Valve seat	Stainless steel 1.4571 (optionally hardened)
9	O-ring valve seat	EPDM or PTFE
10	Valve body	Stainless steel CF3M

Dimensions

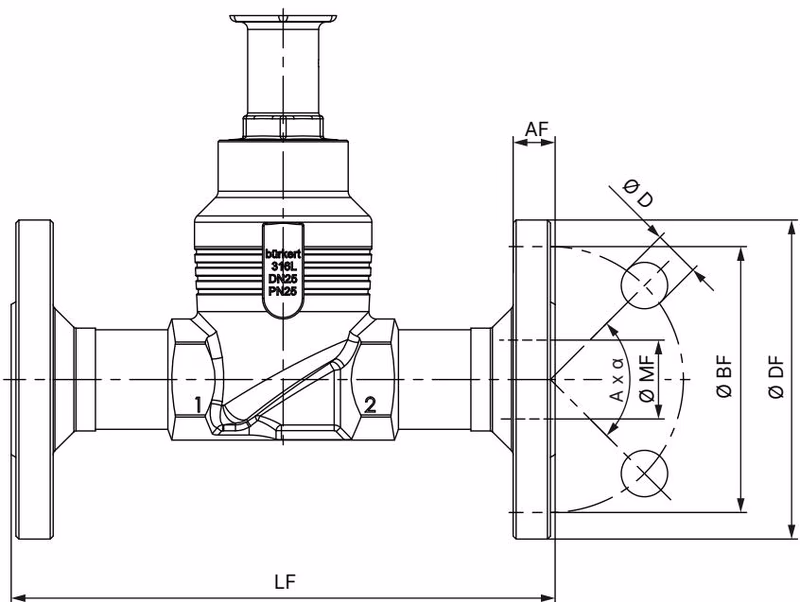

Body with Flange Connection

DN	∅ DF	LF	∅ BF	AF	∅ D	A x α	∅ MF
10	90	130	60	16	14	4 × 90°	13.6
15	95	130	65	16	14	4 × 90°	18.1
20	105	150	75	18	14	4 × 90°	23.7
25	115	160	85	18	14	4 × 90°	29.7
32	140	180	100	18	18	4 × 90°	38.4
40	150	200	110	18	18	4 × 90°	44.3
50	165	230	125	20	18	4 × 90°	56.3

(Dimensions in mm, unless otherwise stated. Excerpt for DIN EN 1092 PN 25 FTF 1 according to DIN EN 558-1)

Performance Specifications

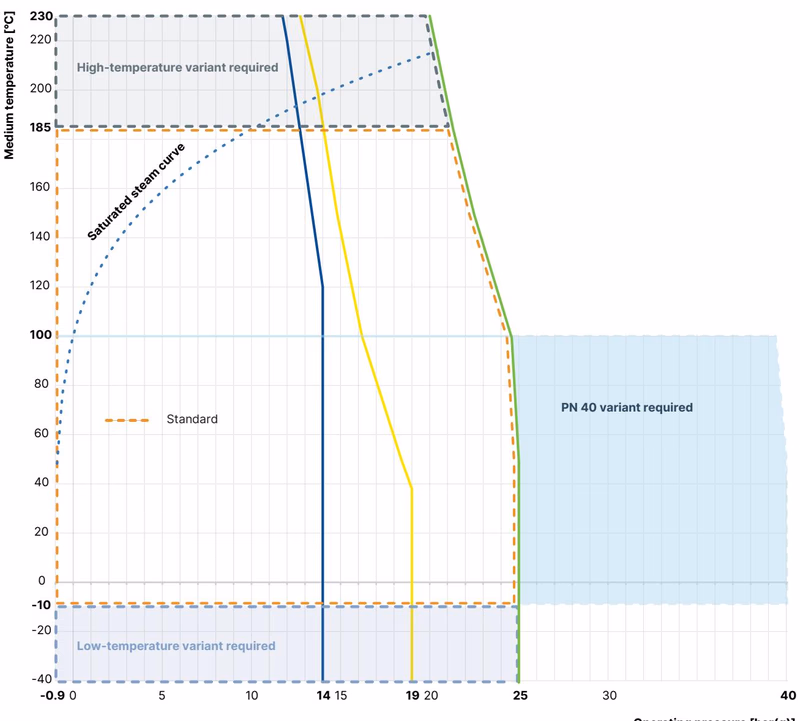

Operating Limits for Medium Temperature and Operating Pressure

In addition to the maximum operating pressures, the application range of Bürkert process valves is limited by the nominal pressure in accordance with the relevant standard.

WARNING

For device variants with approvals or conformities, deviating technical operating limits (temperature, pressure) may apply. Refer to the corresponding approval-related documentation.

Operating Limits for Optional Variants

• High-temperature variant: Suitable for applications with steam, neutral gases, and other heat transfer mediums up to +230 °C.
• Drinking water variant: Wetted materials are tested for suitability with drinking water up to +85 °C.
• Vacuum variant: Without leakage bore, suitable for pressures down to -0.9 bar(g).
• Low-temperature variant: Suitable for minimum medium temperatures down to -40 °C.
• Oxygen variant: Non-metallic wetted materials are tested for suitability with oxygen up to 25 bar(g) and +60 °C.
• Hydrogen variant: Wetted materials are tested for suitability with hydrogen up to 40 bar(g) and +100 °C.

Product Design and Assembly

Safety Position via Energy Storage (Optional)

The safety starting positions in case of power interruption are realized with the optional energy storage SAFEPOS energy-pack. The desired position is set via the menu. In addition to the end positions (open/closed), any desired intermediate position can be defined here. The energy storage has a lifespan of up to 10 years, depending on the operating conditions. The power of the energy storage is monitored, and a warning is displayed to indicate its service life is coming to an end. The storage device is designed as a plug-in module to facilitate replacement.
