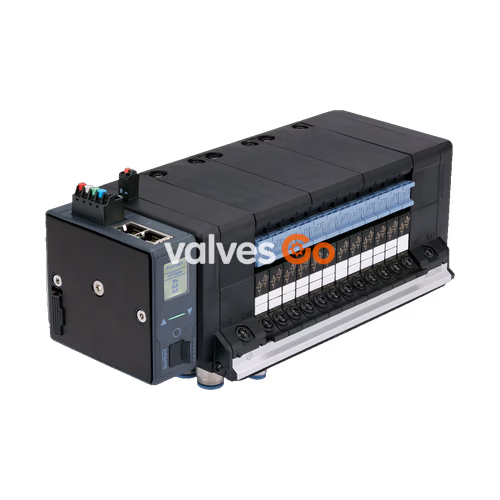

Burkert Type 8652 (Article No. 20110864) is a 12-bank AirLINE valve island optimised for process automation. This specific configuration features an AirLINE Quick aluminium adapter plate, brass D10 pressure ports, and brass D6 working ports. It supports Industrial Ethernet protocols (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) and operates within a pressure range of -1 to 10 bar and temperatures from -10 °C to 55 °C. The system includes integrated check valves in the exhaust air ducts to prevent unplanned actuation from pressure peaks, and supports pneumatic HotSwap functionality.

Valve Island Configuration (Article 20110864)

This specific model is pre-configured with the following setup:

Position	Configuration
Valve positions 1-8	2x 3/2-way WWC (Circuit function C)
Valve positions 9-12	Blind plate
Pressure port	D10 (Brass)
Working port	D6 (Brass)
AirLINE Quick material	Aluminium
Auxiliary pilot air	Internal
Additional supply right/left	Push-in connector D6 and D10

General Technical Data

Property	Value
Body material	PA (polyamide)
Seal material	NBR and PUR
Width per station	11 mm
Nominal operating mode	Continuous operation (100 % duty cycle)
Operating voltage	24 V DC (±10% tolerance)
Nominal power of each valve	0.7 W (0.175 W after power reduction)
Nominal current of each valve	29 mA (10 mA after power reduction)
Operating medium	Oil-free or lubricated compressed dry air, neutral gases (5 μm filter recommended)
Degree of protection	IP20 (IP65 in closed control cabinets)

AirLINE Quick Adapter

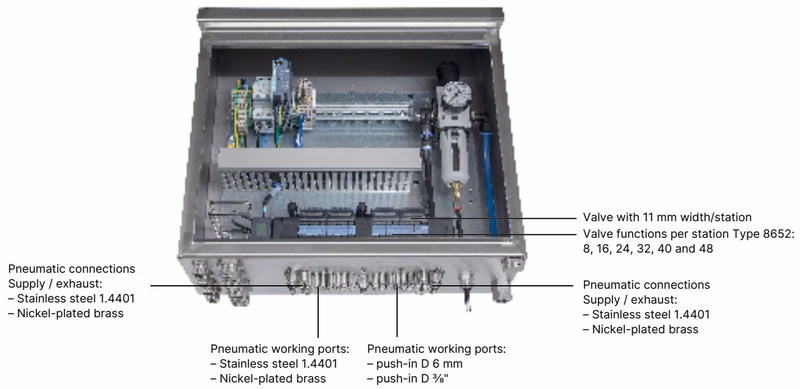

AirLINE Quick considerably reduces the use of components in the control cabinet. With the AirLINE Quick Adapter, the valve terminal is adapted directly to the control cabinet floor or control cabinet wall.

Advantages

• Reduced space requirement in the control cabinet, making it possible to use more compact enclosures.
• Reduced installation effort due to hose connections directly at the bottom of the control cabinet.

Approvals and Conformities

• Explosion protection: As a category 3 device suitable for zone 2/22. ATEX: II 3G Ex ec IIC Gc / II 3D Ex tc IIIC Dc. IECEx: Ex ec IIC Gc / Ex tc IIIC Dc.
• North America (USA/Canada): UL Listed (UL 61010-1, CAN/CSA-C22.2 No. 61010-1). UL Recognized for Hazardous Locations (Class I, Zone 2; Class II, Zone 22; Class I, Div 2).
• China Compulsory Certification (CCC): Suitable for import and use for hazardous applications in China.

Dimensions

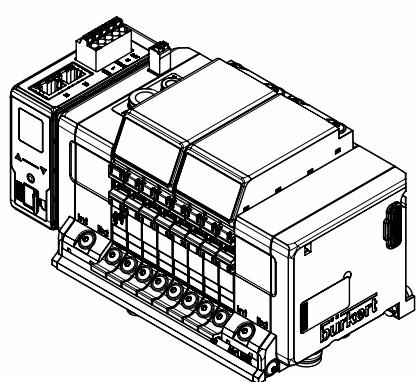

The following dimensions apply to the 12-fold variant:

Variant	A	B	C	m	n
12-fold	77 mm	154 mm	10 x M5	11	3

Fieldbus Interface

This model is equipped with an Industrial Ethernet interface (PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CC-Link IE Field Basic) via X1 and X2 RJ45 ports.

Pin	Assignment
1	TX+
2	TX-
3	RX+
6	RX-
4, 5, 7, 8	N.C.

Safety Instructions for EX Areas

• Danger from voltage: Before working on the device or system, disconnect the power supply and secure against reactivation.
• Hot Swap restriction: The use of the Hot Swap function is prohibited in a present explosive atmosphere. It is only permitted if the absence of an explosive atmosphere can be proven and ensured for a certain period of time using suitable test equipment.
• Electrostatic charge: Sudden discharge of electrostatically charged devices or persons can cause an explosion. Take appropriate measures to ensure that no electrostatic charges can occur in the potentially explosive area.
