Burkert Type 3361 electromotive 2-way globe control valve is designed for highly precise, dynamic closed-loop control under demanding operating conditions. The electromotive actuator with a ball screw positions the control cone with high precision, featuring a positioning speed of up to 6 mm/s that reacts almost delay-free to process signals. The valve body is flow-optimized, and the closed design with a robust surface ensures hygienic requirements for fast and residue-free cleaning. It is highly resistant to weather, impact, and vibration, making it suitable for harsh environmental conditions.

General Technical Data

Property	Value
Design	Globe control valve
Nominal diameter	DN 50 (Flange DIN EN 1092-1)
Safety setting (power failure)	With SAFEPOS energy-pack: open, closed or freely programmable position. Without: blocked in last position
Flow direction	Against closing direction (below seat)
Operating pressure	0 to 10 bar (PN 25)
Kv value (water)	24.5 m³/h
Flow characteristic	Equal percentage 50:1
Travel speed	6 mm/s (for AG2 actuator force 1300 N)
Operating voltage	24 V DC ± 10 % (maximum residual ripple 10 %)
Protection class	III (DIN EN 61140)
Duty cycle	100 %
Medium temperature	-10 °C to +130 °C
Ambient temperature	-25 °C to +65 °C (without additional modules)
Degree of protection	IP65/IP67 (DIN EN 60529), NEMA 4X

INFO

The Type 3361 provides many helpful functions for process monitoring, valve diagnostics, and predictive maintenance, offering decisive advantages for modern process automation.

Materials

Component	Material
Valve body	Stainless steel CF3M
Actuator housing	Powder-coated aluminium
Spindle	Stainless steel 1.4401 (316)/1.4404 (316L)
Spindle seal	PTFE V-seals (filled) with spring compensation
Seat seal	PTFE (Polytetrafluorethylene)
O-ring valve seat	EPDM or PTFE
Display housing/blind cover	PPS (standard)

Dimensions

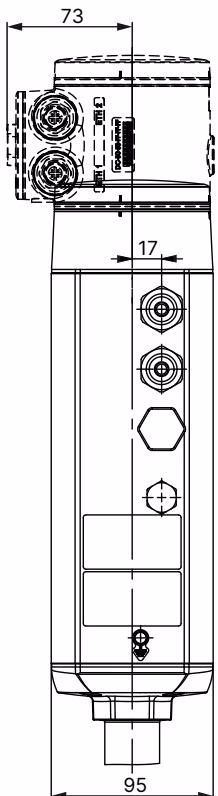

Actuator (AG2)

Note: Dimensions in mm, unless otherwise stated. Dimensions without sealing function: the actuator is raised by approx. 2 mm in the closed position.

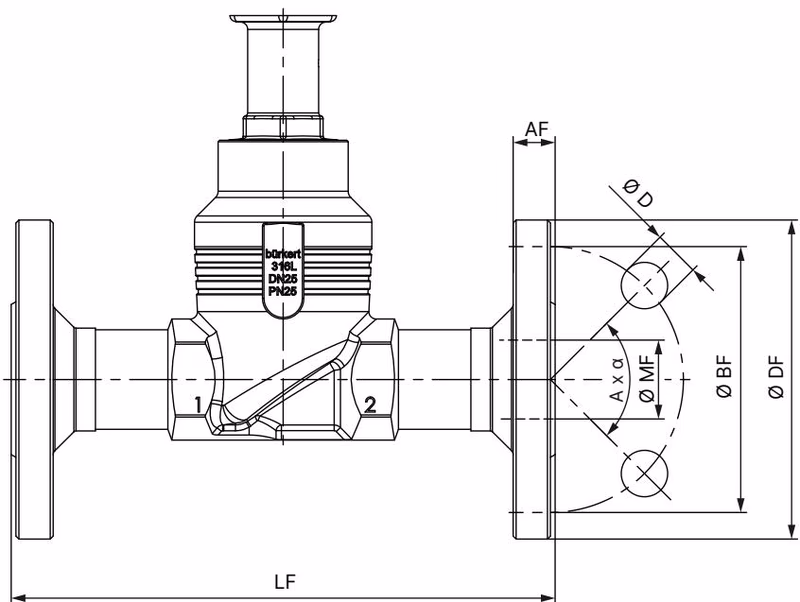

Body with Flange Connection

DN	∅ DF	LF	∅ BF	AF	∅ D	A x α	∅ MF
50	165	230	125	20	18	4 × 90°	56.3

Product Features

• 360° LED Light Ring: A clearly visible 360° LED ring is attached to the blind cover or display module to indicate the device status, the valve end position, and the operating state.
• Mechanical Position Indicator: Shows the current valve position even if the supply voltage fails.
• Mechanical Manual Override: Ensures that the actuator can be operated even if the power supply fails.
• Safety Position via Energy Storage (Optional): The safety starting positions in case of power interruption is realized with the optional SAFEPOS energy-pack. The energy storage device is fully charged and ready for operation after a maximum of 120 seconds.

WARNING

If devices do not have the optional SAFEPOS energy-pack, the valve remains in an undefined position in the event of a power failure. If the valve position is relevant as regards safety, use only devices which have the SAFEPOS energy-pack.
