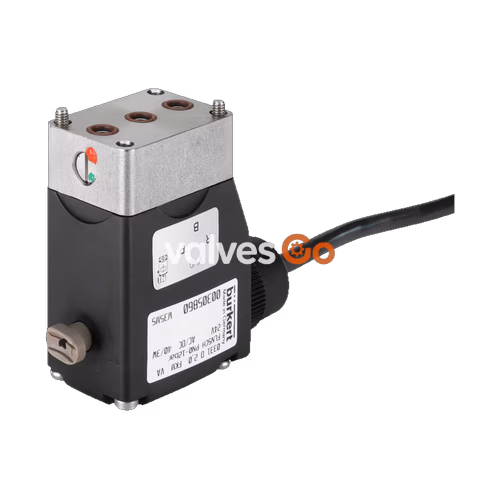

BURKERT 23541 (Type 0331) is a direct-acting, media-separated pivoted armature valve designed for controlling, shutting off, and dosing neutral and aggressive media. Available in 2/2 and 3/2-way variants, this specific model is a 3/2-way normally closed valve (Circuit Function C) featuring a Bürkert-specific flange connection (SFB). The solenoid actuator and the medium chamber are separated by a diaphragm system, making it highly suitable for critical media such as aggressive acids and lyes.

The solenoid coils are moulded with a chemically resistant epoxy. The Type 0331 series is equipped with a service-friendly, robust manual override for start-up and testing.

Key Features

• Direct-acting, media-separated valve up to DN 4
• Pilot valve with Bürkert-specific flange variant (SFB)
• Maintenance-free pivoted armature technology
• Service-friendly, robust manual override
• Explosion-proof variants available

General Technical Data

Product Properties	Specification
Orifice	DN 2...DN 4 (Model 23541: 3.00 mm)
Circuit function	A, B, C, D, E, F and T (Model 23541: C - normally closed)
Body material	Brass, Stainless steel (1.4401), PP, PEEK (Model 23541: Stainless steel)
Seal material	EPDM, FKM, FFKM, NBR (Model 23541: EPDM)
Thermal insulation class	Epoxy coil class H
Duty cycle	100% continuous operation (for brass and stainless steel)
Voltage	24 V DC (Model 23541), 24 V 50 Hz, 110 V 50 Hz, 230 V 50 Hz, 120 V 60 Hz, 240 V 60 Hz
Voltage tolerance	±10%
Port connection	Flange interface according to Bürkert standard
Degree of protection	IP65 with cable plug
Installation position	As required, preferably with actuator upright
Ambient temperature	Max. +55 °C

TIP

For safe operation of the solenoid valve, a dirt trap (≤ 500 µm) must be installed before the valve inlet.

Circuit Functions

Symbol	Description
	Circuit function A (CF A) 2/2-way solenoid valve Direct-acting Normally closed
	Circuit function B (CF B) 2/2-way solenoid valve Direct-acting Normally open
	Circuit function C (CF C) 3/2-way solenoid valve Direct-acting Normally closed
	Circuit function D (CF D) 3/2-way solenoid valve Direct-acting Normally open
	Circuit function E (CF E) 3/2-way mixing valve (solenoid valve)
	Circuit function F (CF F) 3/2-way distribution valve (solenoid valve) Direct-acting
	Circuit function T (CF T) 3/2-way solenoid valve Direct-acting Flow direction optional Normally closed

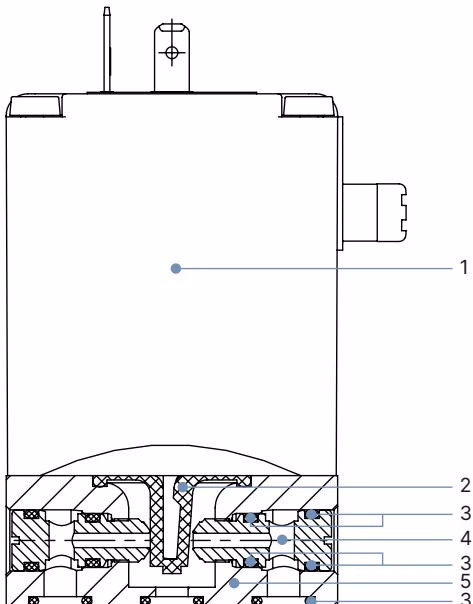

Material Specifications

No.	Element	Material
1	Coil	Epoxy
2	Diaphragm	EPDM, FKM, FFKM, NBR
3	O-ring	EPDM, FKM, FFKM, NBR
4	Seat	Brass, Stainless steel (1.4401), PP, PEEK
5	Valve body	Brass, Stainless steel (1.4401), PP, PEEK

Performance Specifications

Pressure range and flow rate (Standard variant - Brass, stainless steel or PEEK body)

Circuit function	DN	Kv value water DC [m³/h]	Kv value water AC [m³/h]	Pressure range Standard [bar]	Pressure range Vacuum [bar]
A / B / C / D / F	2	0.08	0.10	0...16	-0.98...10
A / B / C / D / F	3	0.12	0.15	0...10	-0.98...6
A / B / C / D / F	4	0.15	0.18	0...5	-0.98...3
E	2	0.08	0.10	0...10	-0.98...8
E	3	0.12	0.15	0...6	-0.98...5
E	4	0.15	0.18	0...3	-0.98...2.5
T	2	0.08	0.10	0...12	-0.98...8
T	3	0.12	0.15	0...8	-0.98...5
T	4	0.15	0.18	0...4	-0.98...3

WARNING

Devices with FKM and/or FFKM diaphragms are reduced to a maximum pressure of 12 bar.
