BURKERT Type 3361 electromotive 2-way globe control valve (SKU 354620) is the ideal solution for demanding control tasks and operating conditions. The electromotive actuator with a ball screw positions the control cone with the highest precision. A unique feature is its high positioning speed of up to 6 mm/s, which reacts almost delay-free to process signals. Pressure variations or shocks in the medium are not transferred to the valve position.

Each flow-optimized valve body can be equipped with up to 5 different valve seats for precise adaptation to customer needs. The actuator and valve are perfectly adapted to each other with a closed design and robust surface, ensuring hygienic requirements for fast and residue-free cleaning.

Product Features

• Highly precise, dynamic closed-loop control: Ensures accurate flow regulation.
• Robust design: Weather, impact, and vibration resistant (IP65/IP67, NEMA 4X).
• Hygienic and easy to clean: Closed design with a robust surface.
• Flexible valve seats: Several $K_{vs}$ values per port size due to removable valve seats.
• Safety position: Optional SAFEPOS energy-pack for approaching a safe position in case of power failure.

General Technical Data

Property	Value
Design	Globe control valve
Nominal diameter	DN 15 (NPS 1/2)
Port connection	Clamp (DIN 32676 series B / ISO 4200)
Operating pressure	0 to 25 bar(g)
Supply voltage	24 V DC ± 10 %
Valve body material	Stainless steel (CF3M)
Seat leakage	Class III, IV and VI (DIN EN 60534-4)
Travel speed	6 mm/s (for AG2 actuator force 1300 N)
Medium temperature	-40 °C to +230 °C (depending on variant and seal)

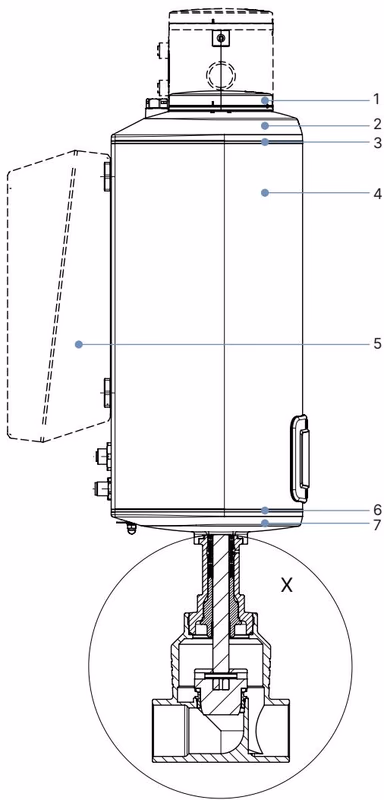

Materials

Component	Material
Spindle	Stainless steel 1.4401 (316) / 1.4404 (316L)
Spindle seal	PTFE V-seals (filled) with spring compensation
Valve body	Stainless steel CF3M
Seat seal	Stainless steel 1.4571, PTFE or PEEK seal washer

Approvals and Conformities

Approvals

Depending on the specific configuration, the Type 3361 valve complies with various standards:

• Explosion protection: ATEX / IECEx (Zone 2/22)
• North America: cULus Listed
• Food & Beverage: FDA, USP Class VI, EC Regulation 1935/2004
• Drinking water: Suitable for drinking water applications (UBA)

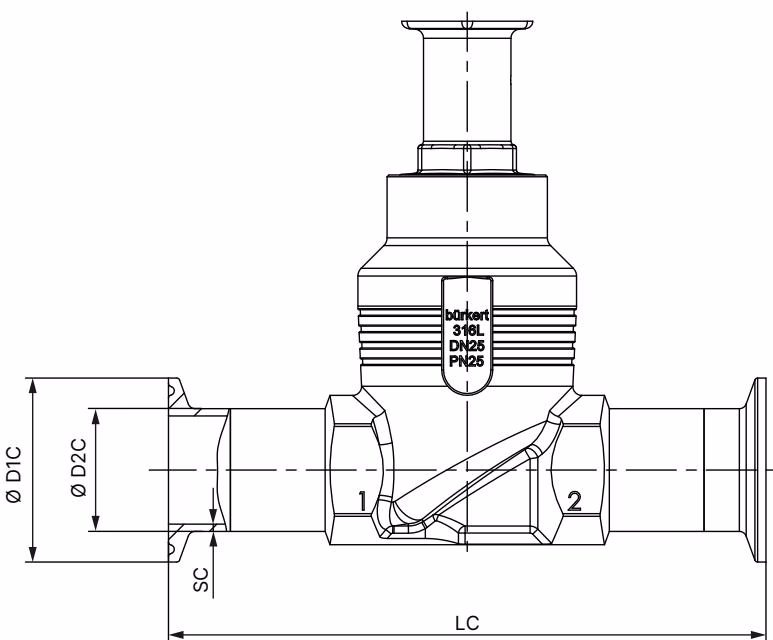

Dimensions (Clamp Connection)

Note: Dimensions in mm, unless otherwise stated.

DN	Clamp: DIN 32676 series B	$\varnothing$ D2 C	$\varnothing$ D1 C	SC
15	146	21.3	50.5	1.6
