The TLV iT5-FF-SUN is a monitoring sensor designed for reliable, high-frequency monitoring of crucial steam-using equipment such as heat exchangers, presses and turbines, equipment in difficult-to-reach locations, or steam traps. It features surface temperature and ultrasonic measurement based on the FOUNDATION™ Fieldbus protocol.

Features

• High frequency monitoring: measurement cycles configurable between 1 and 15 seconds.
• Wired network connection enables reliable data communication.
• Surface temperature measurement up to 400 °C.
• Intrinsically safe construction for use in hazardous and non-hazardous locations.

Note

Steam trap diagnostic software is required separately. Contact TLV for details.

Specifications

Parameter	Low Temperature Type	High Temperature Type
Maximum Measurement Temperature (°C)	250	400
Measurable Temperature Range (°C)	-40 to +250	-40 to +400
Communication Standard	FOUNDATION™ Fieldbus	FOUNDATION™ Fieldbus
Power Source	Supplied by FOUNDATION™ Fieldbus	Supplied by FOUNDATION™ Fieldbus
Maximum No. of Connections	32 devices (using TLV-recommended linking device)	32 devices (using TLV-recommended linking device)
Segment Extension	Up to 4 repeaters arranged in series per segment	Up to 4 repeaters arranged in series per segment
Measurement Cycle	1 to 15 seconds	1 to 15 seconds

Electrical Rating & Intrinsically Safe Standards

FISCO

• Power circuit Allowable voltage: 17.5 V
• Allowable current: 380 mA
• Allowable power: 5.32 W
• Internal inductance: 10 μH
• Internal capacitance: 5 nF

ENTITY

• Power circuit Allowable voltage: 24 V
• Allowable current: 250 mA
• Internal inductance: 10 μH
• Internal capacitance: 0

Dimensions

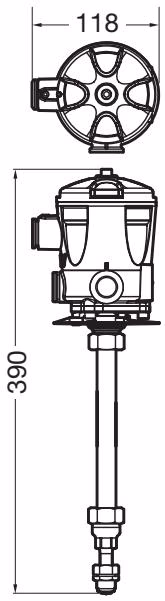

iT5-FF-SUN Straight Pipe

Units: mm, Weight: approx. 900 g

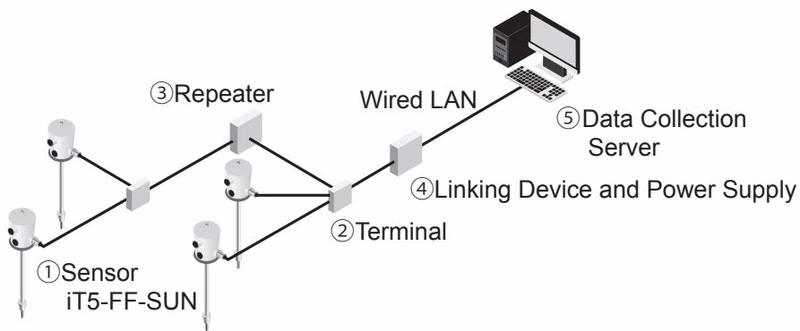

System Configuration Example

No.	Model	Function
①	Sensor: iT5-FF-SUN	Measurement of ultrasound and surface temperature, transmission of information
②	Terminal	Fieldbus device connection, relay and branching
③	Repeater	Relay of Fieldbus information between linking device and terminal or between terminals over long distances and power supply
④	Linking Device and Power Supply	Relay of Fieldbus information and power supply
⑤	Data Collection Server	Importing collected data
